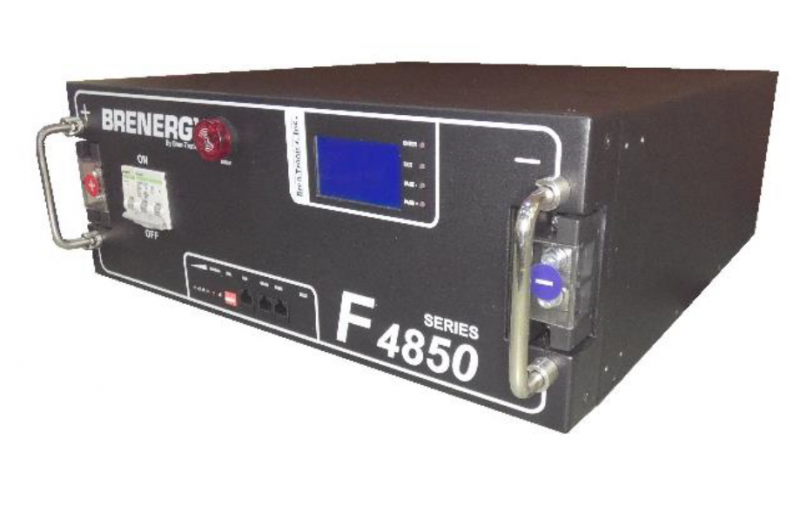

Brenergy™ Series F4850, 5kWh LFP Battery
BRENERGY™ SERIES F4850, 4U, 5.0kWh LFP Battery
● Lithium Iron Phosphate (LiFePO4) battery for use in energy storage applications.
● Utilizes cylindrical cells for consistent, balanced performance and maximum cycle life.
● Long cycle life
● Light weight
● Integral BMS, with RS-485 Comm
● Cell voltage and cell temperature monitoring
● Over-voltage/under-voltage/over-current/over-temperature protection
● Main connection, high current dual-parallel connection terminal strips
● Well suited for stationary or portable energy storage.
● Storage/buffer element for solar energy systems - stationary and portable, on-grid and off-grid.
● Storage/buffer element that facilitates "fuel stretching" operation of generators.
● Smart Grid applications that require energy storage.
● Energy buffer for Electric Vehicle (EV) Charge Stations.
● Large UPS/backup power systems
● 48Vdc Telecom energy systems
Dimensions
Other
| SKU | BT-70983A-50 |
|---|---|
| Nominal Voltage | 51.2V |
| Ah | 100 Ah |
| Operating Temperature | -10°C to 60°C (-14°F to 140°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Connector | Terminal strips with 2x M6 screw |
| State of Charge Indicator | No |
| Battery Type | Rechargeable |
| Brenergy | Yes |
