SKU
BTC-70824-2
Charger Cap xx90
NSN
6130-01-606-5295

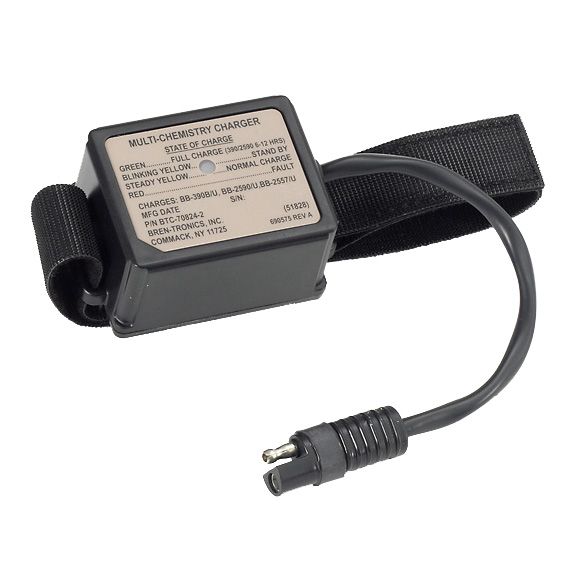

Charging Cap
Accepts AC, DC & Solar Power from multiple DC inputs for charging the BB-2590/U, BB-2557/U, & BB-390B/U. With the optional BTA-70768 (X90 Scavenger) you can charge BB-2590/Us, BB-2557/Us or BB-390 from partially dead BA-5590s or any X90 battery
- Dedicated single-station charger that will charge the following batteries:
- BB-2590/U (BT-70791A, BT-70791Bx or BT-70791Cx) in 5.5 hours*
- BB-390B/U (BT-70790B) in 12 hours
- BB-2557/U (BT-70757Bx) in 3 hours*
- Powered from 20-30Vdc, 50W max, 100-230Vac, 50/60Hz or a Solar Panel**
- Equipped with a two-pin "trailer hitch" connector
- Simple solution for the user who does not require a bulk or multi-station charger
- RoHS compliant
*Higher capacity versions of the BB-2590/U and BB-2557/U are charged with slightly longer times
Dimensions
Length: Charger: 3.3 in (84 mm), Cable: 8.0 in (203 MM), Security Strap: 13.5
Width: Charger: 2.2
Height: Charger: 2.0
Weight: 0.5 lbs.
Other
| SKU | BTC-70824-2 |
|---|---|
| Case Materials/Colors | High Impact ABS / Black |
| Power Requirements | 20-30Vdc, 50W max, 100-230Vac, 50/60 Hz, or a Solar Panel |
| Storage Temperature | -40°C to + 70°C (-40°F to +158°F) |
| Operating Temperature | -20°C to + 50°C (-4°F to +122°F) |
