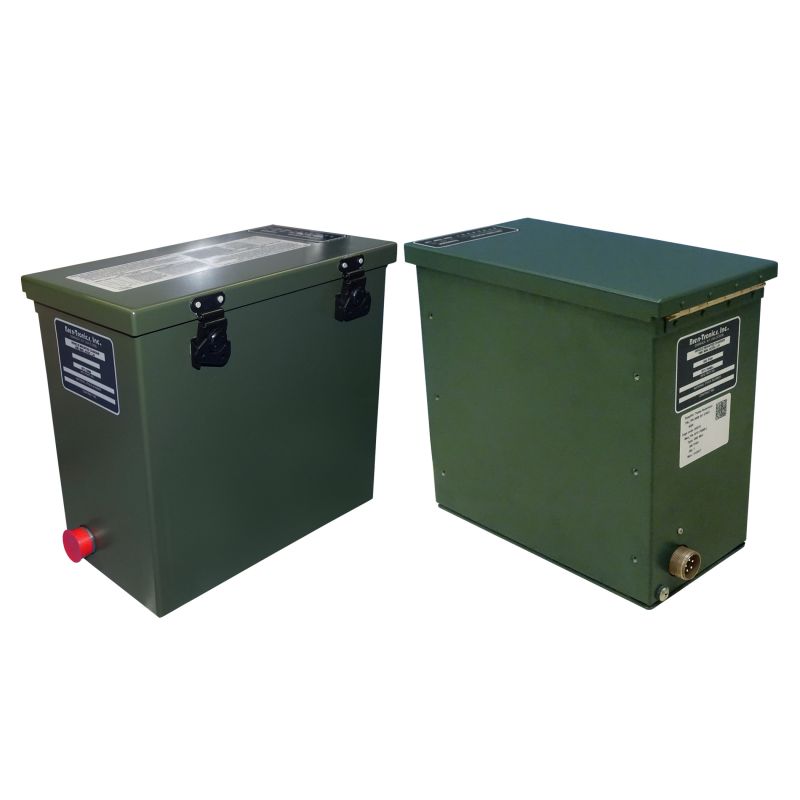

Current configurations available: BTC-70988 (hinge on long size of case - item on left) and BTC-70988-L (hinge on short-left side of case - item on right) zoom

  • Current configurations available: BTC-70988 (hinge on long size of case - item on left) and BTC-70988-L (hinge on short-left side of case - item on right)
  • BTC-70988 model shown closed
  • BTC-70988 model shown open
  • BTC-70988-L model shown closed
  • BTC-70988-L model shown open

Vehicle Mounted Charger (VMC Mini) Series

BTC-70988, BTC-70988-L

The VMC Mini series is an addition to the VMC and VMC Lite product lines. New design with significant reduction on size and weight in comparison with VMC Lite but the same footprint of sturdiness characteristic of Bren-Tronics products.

  • ● State of the art portable battery charger series designed for use on a military vehicle.
    ● The chargers are capable of charging up to 8 batteries simultaneously (depending on adapter) with an easy to
       follow LED lighting sequence.
    ● Will charge and maintain a large range of military communication and electronics batteries using a designated
       adapter.
    ● Charging Software is upgradeable in the field or a lab environment through the USB port.
    ● Powered from 11-22Vdc, 20A (max); 22-36Vdc, 275W (max); 90-264Vac, 47-440Hz, 275VA (max)



    Current configurations include:
    ● Model with hinge on long side of case (BTC-70988)
    ● Model with hinge on short -left side of case (BTC-70988-L)

Size / Weight

  • Length

    13.0 in (329 mm)

  • Width

    6.9 in (175 mm)

  • Height

    11.8 in (299 mm)

  • Weight

    11.0 lb (5.0 kg)

Other

  • Materials / Color

    Powder-Coated Welded Aluminum/Olive Drab

  • Power Requirements

    11-22Vdc, 20A (max), 22-36Vdc, 175W (max), 90-264Vac, 47-440Hz, 275VA (max)

  • Storage Temperature

    -40°C to +70°C (-40°F to +158°F)

  • Operating Temperature

    -20°C to +50°C (-4°F to +122°F)
