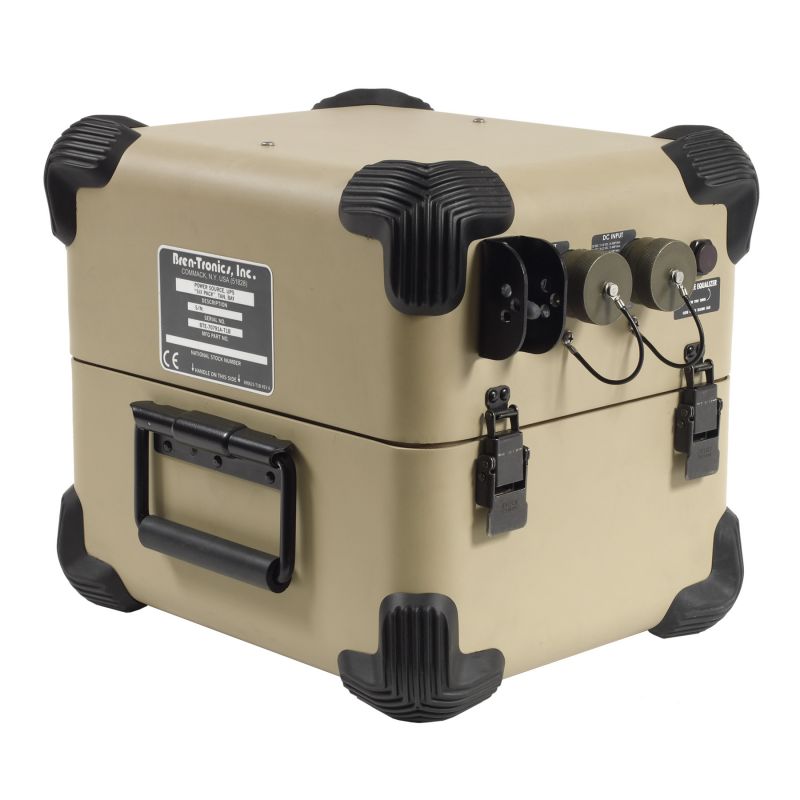

BTE-70791A-T1B

1.8 kWh BB-2590/U Based Portable Power System

The 6-PACK APU is a BB-2590/U based Portable Power System. Capable of acting as a UPS, Power Supply, or Standalone Battery Unit. The 6-PACK APU provides versatility needed by a warfighter to power their mission with one piece of equipment.

  • NSN: 6130-01-588-5188
  • ● 1.2KWh to 1.8KWh Portable Power System with the ability to increase as higher capacity BB-2590/U batteries
       become available.
    ● SMBus v1.1 & SBData v1.1 compliant.
    ● RS-485 Communication Interface.
    ● Capable of acting as a UPS, Power Supply or Standalone Battery Unit.
    ● The 6-PACK provides versatility needed by the Warfighter to power their mission with one piece of equipment.
    ● The 6-PACK can hold one (1) to six (6) BB-2590/U batteries packed into a rugged, watertight container
       (batteries NOT included).
    ● Contains an integrated Power Management System.
    ● DC input protection prevents over-discharge damage to vehicle battery.
    ● Maximum Power Point Tracking (MPPT).

Size / Weight

  • Length

    12.8 in (325 mm)

  • Width

    10.8 in (274 mm)

  • Height

    11.3 in (287 mm)

  • Weight

    With batteries: 39 lb, Without batteries: 21 lb (With batteries: 18 kg, Without batteries: 9.5 kg)

Other

  • Materials / Color

    Heavy Duty Aluminum/Tan

  • Operating Temperature

    -20°C to +55°C (-4°F to 131°F)

The following are related products that are not included with featured product and sold separately.



Input Cables

Output Cables

BTA-70863-C
(12/24V DC INPUT CONNECTOR)

BTA-70791A-1
(24V DC OUTPUT CABLE W/ SCREW TERMINAL)

BTA-70863-EX
(DC INPUT POWER EXTENSION)

BTA-70791A-1B
(24V DC OUTPUT CABLE W/ BAYONET TERMINAL)

BTA-70863-24
(24V DC INPUT CABLE W/ RING LUGS)

BTA-70791A-2
(24V DC OUTPUT CABLE W/ RING LUGS)
BTA-70863-24AL
(24V DC INPUT CABLE W/ ALLIGATOR CLIPS)

BTA-70791A-2-RA
(24V DC OUTPUT CABLE W/ 90' ANGLE RING LUGS)
BTA-70816B
(HUMMER SPLITTER BAYONET CABLE)
BTA-70791A-3
(24V DC OUTPUT CABLE W/ 4 SCREW TERMINALS)
BTA-70835B
(24V DC HUMMER CABLE)
BTA-70791A-4
(24V DC OUTPUT CABLE, SWE-DISH ANTENNA)
BTA-70856-1B
(12V DC INPUT CABLE W/ RING LUGS)
BTA-70791A-5
(12/24V DC OUTPUT CABLE W/ RING LUGS)
BTA-70856-12AL
(12V DC INPUT CABLE W/ ALLIGATOR CLIPS)

BTA-70791A-6
(12V DC OUTPUT CABLE W/ DUAL X90 TERMINALS)
BTA-70857-2B
(SOLAR INPUT CABLE FOR 3-PANEL)
BTA-70791A-7
(12V DC OUTPUT CABLE W/ X90 TERMINAL)
BTA-70864-C
(AC INPUT CONNECTOR)
BTA-70791A-8
(12/24V DC OUTPUT CABLE W/ BB-2590 CONN)

BTA-70864-2
(AC INPUT CABLE W/ US PLUG, 12FT)

BTA-70791A-9
(24V DC OUTPUT CABLE W/ PR4G TERMINAL)

BTA-70864-3
(AC INPUT CABLE W/ US PLUG, 6FT)
BTA-70791A-10
(12/24V OUTPUT CABLE W/ BAYONET TERMINAL)
BTA-70864-5
(AC INPUT CABLE W/ EU PLUG)
BTA-70791A-11
(12V OUTPUT CABLE W/ 2 PIN AMPH)
BTA-70864-6
(AC INPUT CABLE ASSY W/ UK PLUG)

BTA-70791A-12
(24V OUTPUT CABLE W/ RING LUGS)
BTA-70864-7
(AC INPUT DUAL CABLE ASSY W/ US PLUG)
BTA-70791A-13
(DC CABLE W/ CIGARETTE LIGHTER OUTPUT)

BTA-70791A-14
(24V OUPUT CABLE, LRAS)
BTA-70791A-C
(DC OUTPUT CONNECTOR)
BTA-70791A-C90
(DC OUTPUT CONNECTOR, 90' ANGLE)

Optional Equipment

BTA-70695
(VOLTAGE LIMITER, 32V, 250W)
BTC-70772-T1
(AC BOOSTER)
BTA-70695H
(VOLTAGE LIMITER, 32V, 30A)
BTC-70772-T2
(DC BOOSTER)

BTA-70695-1
(DUAL CABLE FOR VOLTAGE LIMITER)
BTJ-70861
(J-BOX, SOLAR/24V)
BTA-70695-2
(6-PACK TO LIMITER CABLE)
BTJ-70862B
(J-BOX, 4IN, 1OUT W/ BAYONET TERMINAL)
BTA-70772-C90
(BOOSTER INPUT CABLE CONN, 90' ANGLE)
BTJ-70893-T1
(POWER CONDITIONER)
BTA-70772-1
(BOOSTER TO 6-PACK CABLE)
BTP-70888-T3
(24V DC TO 120V AC INVERTER)
BTA-70772-2
(BOOSTER TO 6-PACK DC INPUT CABLE)
BTP-70888-T4
(24V DC TO 230V AC INVERTER)
BTA-70893-1
(POWER CONDITIONER OUTPUT CABLE)

BTP-70889
(WIND TURBINE)
BTA-70893-2
(POWER CONDITIONER INPUT CABLE)
BTP-70889M
(MAST ASSEMBLY)
BTA-70893-3
(GROUNDING CABLE)
BTP-70986-1x
(60W, 15V Solar Panel)
