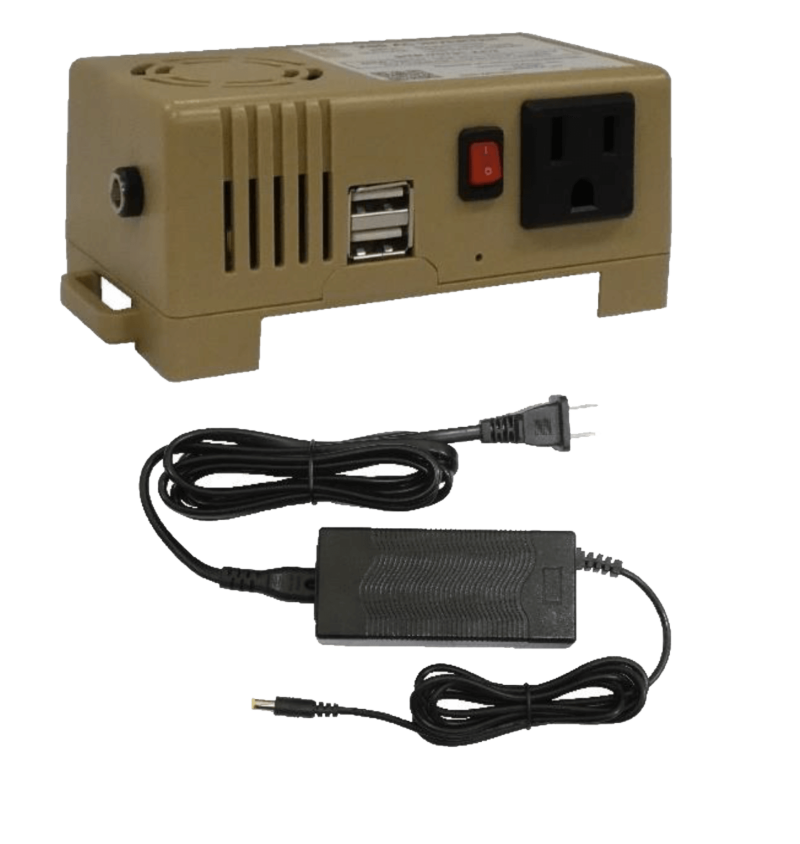

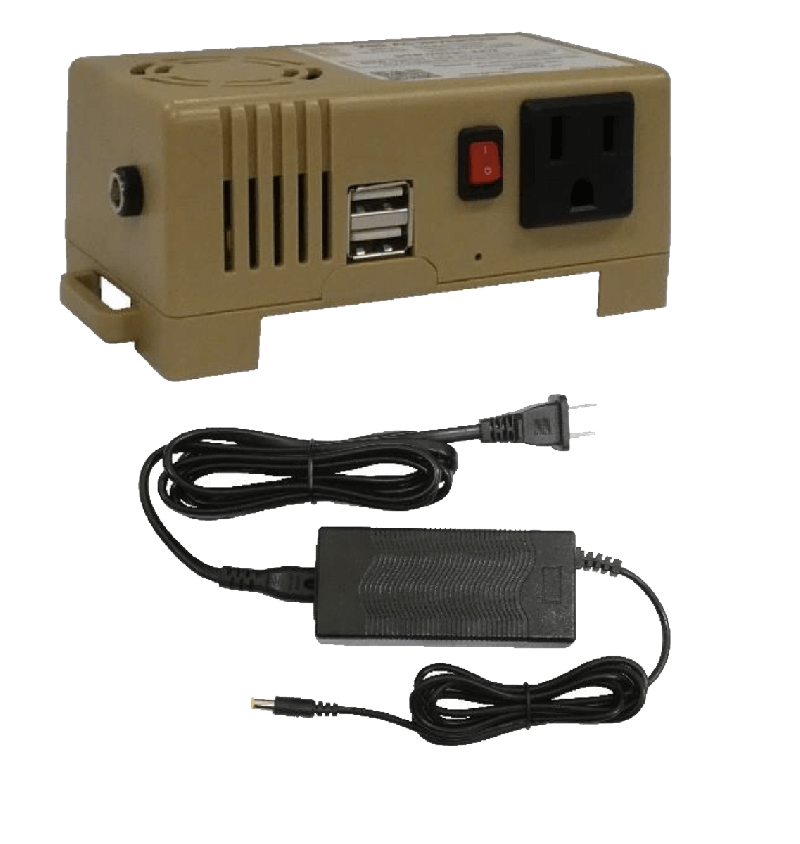

BB-2590/U 120V AC Inverter and Battery Charger Kit
BTK-70791-AC2
Provides AC and USB power while also allowing battery charging from the wall adapter. Works with BB-2590/U and BB-2557/U batteries.
*** Includes BTC-70791-1 for battery charging ***
-
Provides 120W, 120Vac, 60Hz modified sine wave output from BB-2590/U and BB-2557/U batteries.
-
Peak power of 200W.
-
Two USB ports negotiate with mobile device to provide up to 2.1A each of output.
-
Internal protection circuitry automatically shuts down in cases of output shorts, excessive current draw, and temperature overload.
-
Incorporates an On/Off switch.
-
Provides LED status indicator for AC output.
-
Temperature controlled cooling fan runs only when necessary.
-
Charger input - 2.5A maximum rate of charge from a lithuin battery charger. Bren-Tronics part number BTC-70791-1.
-
Charger powered from 100-240Vac, 50/60Hz, 55W.
-
AC output connector - NEMA15 socket.
Dimensions
Other
| SKU | BTK-70791-AC2 |
|---|---|
| Storage Temperature | -22°F to 158°F (-30°C to 70°C) |
| Case Materials/Colors | Plastic/Tan |
| cable | No |
