BT-70791CE, BB-2590/U zoom

  • BT-70791CE, BB-2590/U

BT-70791CE

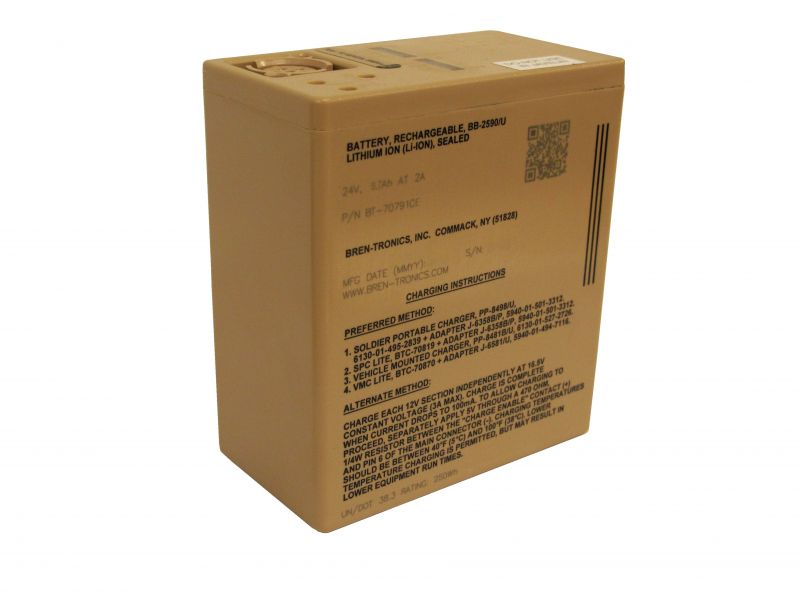

BB-2590/U, 8.7 Ah Low Temp Rechargeable, Lithium-Ion Battery

The BT-70791CE is an enhanced version of the Bren-Tronics battle proven & government tested BB-2590/U to satisfy a robust DOD requirement. Designed and manufactured in the USA, the BT-70791CE provides one tough battery that meets and exceeds military

  • NSN: Conforms to NSN 6140-01-490-4316
  • Chemistry#: Li-ion
  • ● Complies with SMBus v1.1 and SBData v1.1
    ● UN/DOT 38.3 Rating: 251 Wh
    ● Comparable to: BB-2590/U, BT-70791E, BT-70791Bx and BT-70701Cx
    ● Absolute state of charge indicator
    ● Designed, manufactured, and tested to MIL-PRF-32052/1 in the USA
    ● Protected by one or more U.S. Patents 5,625,273 and 6,242,893 and 8,961,225 and D705,167.
       Other Patents Pending
    ● Compliant to European Council EMC Directive 2004/108/EC
    ● CS Schema per IEC 62133


    Typically used in:
    ● Robots
    ● Surveillance / Sensors
    ● SINCGARS & ASIP (AN/PRC-119) Radios
    ● FALCON (AN/PRC-150, 117) Radios

Size / Weight

  • Length

    4.4 in (112 mm)

  • Width

    2.4 in (61 mm)

  • Height

    5.0 in (127 mm)

  • Weight

    3.1 lb (1.4 kg)

Other

  • SMBus

    Yes

  • State of Charge Indicator

    Yes

  • Connector

    Floating type per U.S. Army DWG # SC-C-179495

  • US Government Spec

    MIL-PRF-32052/1

  • Voltage

    28.8V, Two (2) Sections each 14.4V

  • Maximum Voltage

    33.0V, Two (2) Sections each 16.5V

  • Capacity

    In 24V Mode: 8.7 Ah, In 12V Mode: 17.4 Ah

  • Storage Temperature

    -40°C to +40°C (-40°F to +104°F)

  • Operating Temperature

    -30°C to +60°C (-22°F to +140°F)
