SKU
BTA-70589A

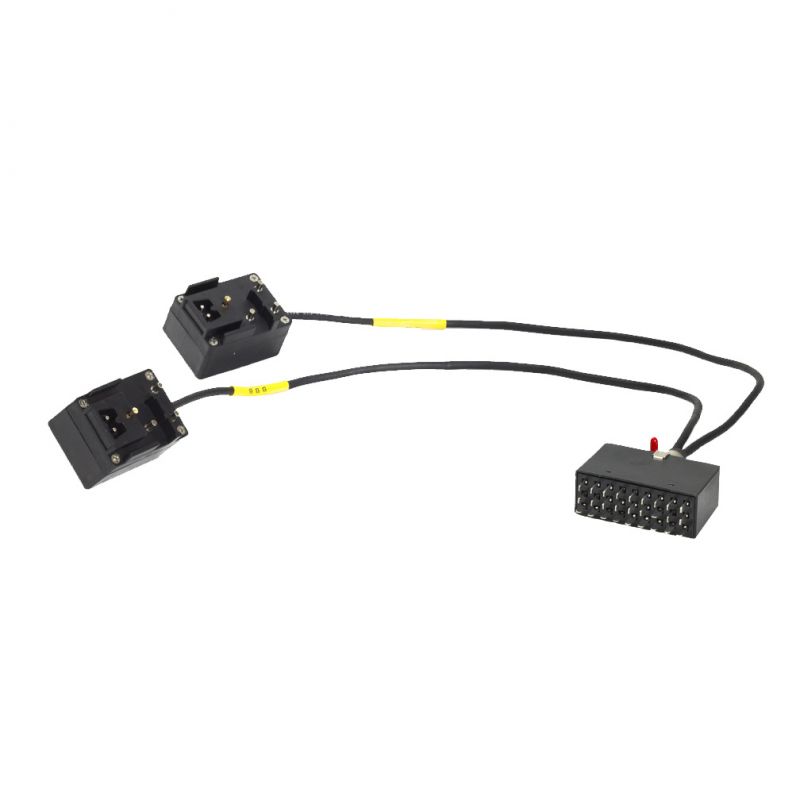

SPC Adapter, Dual PR4G
NSN
5940-01-606-2849
SPC Adapter for Li-Ion Batteries
This adapter is a two (2) position charge adapter for the Lithium-Ion PR4G Manpack, PR4G Handheld Radio, and JIM LR batteries on SPC or SPC Lite Chargers
- This adapter is a two (2) position charge adapter for the Lithium-Ion PR4G Manpack,PR4G Handheld Radio, and JIM LR batteries on SPC or SPC Lite Chargers.
- The BTA-70589A when used in conjunction with the appropriate battery charger will charge one (1) or two (2) of the following batteries:
- ALI-142 (BT-70483, BT-70483-S, BT-70483Bx, BT-70483Bx-S, BT-70582, and BT-70582Bx) in approximately 3 hours
- BA-682B (BT-70651, BT-70651E, and BT-70651Bx) in approximately 3 hours
- ALI-243 (BT-70493, BT-70493-S, BT-70493Ax and BT-70493Ax-S) in approximately 3 hours
- ALI-143 (BT-70480, BT-70480-S, BT-70480Ax and BT-70480Ax-S) in approximately 3 hours
- ALI-147 (BT-70744 and BT-70744AF) in approximately 3 hours
- ALI-247 (BT-70748 and BT-70748AF) in approximately 3 hours
*Higher capacity batteries may take slightly longer to charge
Dimensions
Length: Cable: 22 in (559 mm ), Battery Adapter: 2.7 in (69 mm), Connector 2.9
Width: Battery Adapter: 1.9 in (48 mm), Connector: 1.1
Height: Battery Adapter: 1.7 in (43 mm), Connector: 2.2
Weight: 0.7 lbs.
Other
| SKU | BTA-70589A |
|---|---|
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Case Materials/Colors | Modified ABS Plastic / Black |
| Adapter | SPC or ABC |
| cable | Yes |
