SKU
BT-70939M-TFEC (6T)
Ultra High Capacity 6T Battery
Military #
6T
Chemistry:
Li-ion

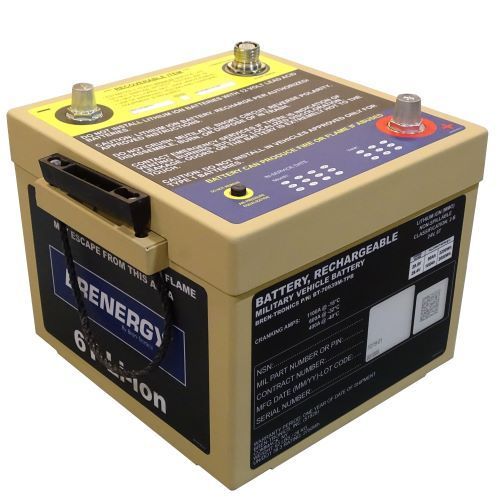

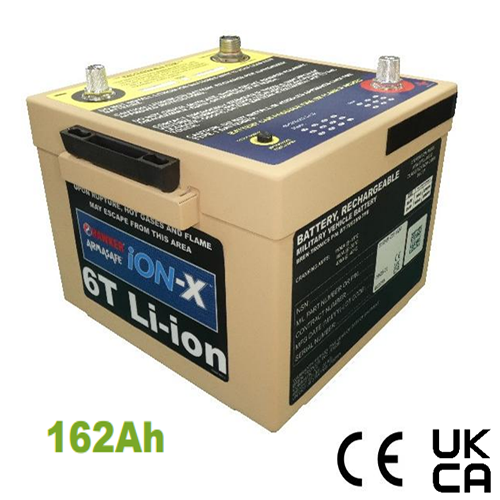

6T Form-Factor Rechargeable Lithium-Ion Battery
Designed for the requirements of MIL PRF-32565C with over 150% the capacity, the Bren-Tronics BT-70939M-TFEC meets the power and energy demands of mission critical applications such as tactical/combat vehicles, silent watch, robotics, and others head on.
- CAN Bus Communication; J1939 compatible
- UN/DOT 38.3 Rating 4.2kWh
- Instantly available 1100A @ -18°C, 400A @ -40°C with no pre-heat required
- Electronically Protected
- Light Weight
- Long Cycle Life
- Meets MIL-PRF-32565C Requirement
- CE and UKCA Compliant
Dimensions
Length: 10
Width: 10.5
Height: 9.05 including conn posts
Weight: 56.7 lbs.
Other
| SKU | BT-70939M-TFEC |
|---|---|
| Nominal Voltage | 25.2 |
| Ah | 162 |
| Maximum Voltage | 29.4V |
| Case Materials/Colors | Metal, Tan/Black |
| Operating Temperature | -46°C to +71°C (-50°F to +160°F) |
| Storage Temperature | -46°C to +71°C (-50°F to +160°F) |
| Connector | Per MIL PRF-32565 |
| State of Charge Indicator | No |
| US Gov Spec | MIL-PRF-32565 |
| Battery Type | Rechargeable |
| Smart Battery | CAN |
