SKU
BTC-70581-1
Dual Desktop CSEL

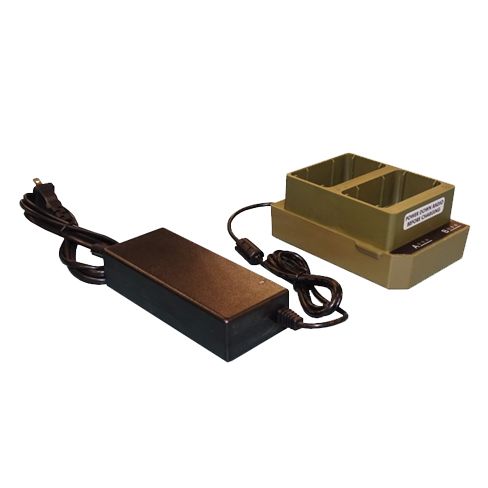

Dual Desktop CSEL Charger
Dedicated desktop charger that will charge one (1) to two (2) of the CSEL (BB-2001A/U, BT-70791Cx, BT-70581B, BT-70581A, BT-70581 or BT-70676Bx) batteries.
• Dedicated desktop charger that will charge one (1) or two (2) of the following:
- CSEL (BB-2001A/U, BT-70581, BT-70581A, BT-70581B, BT-70581Cx or BT-70676Bx) battery with 4 hours
or less
• Powered from 100-240Vac, 50/60Hz or 10-32Vdc, 60W max
• Simple solution for the user who does not require a bulk or multi-station charger
• Optional AC Power Cord configurations available.
- BTP-592212-EU (EU Terminal)
- BTP-592212-UK (UK Terminal)
- BTP-592212-AU (AU Terminal)
Dimensions
Length: Charger: 3.5 in (89 mm), Power Supply: 3.8 in (97 mm), Cable: 72
Width: Charger: 5.5 in (140 mm), Power Supply: 2.4
Height: Charger: 2.8 in (60 mm), Power Supply 1.3
Weight: 1.5 lbs.
Other
| SKU | BTC-70581-1 |
|---|---|
| Case Materials/Colors | High impact ABS/Olive Drab/Black |
| Power Requirements | 100-240V AC, 50/60 Hz, 1.2A max or 10V-32V DC, 60W max |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
