Dual Desktop AN/PRC-148

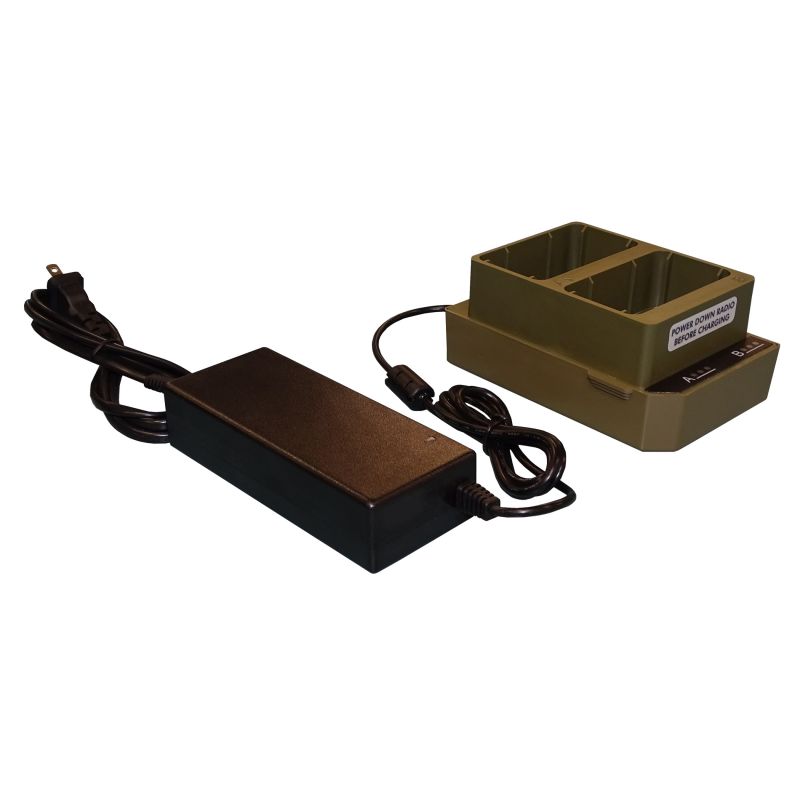

Dual Desktop AN/PRC-148 Charger
This dedicated MBITR (AN/PRC-148) battery desktop charger has a built in status of charge indicators and can charge one (1) to two (2) BT-70716Bx or the MBITR batteries with or without the radio. This low cost AC charger is low profile.
-
Dedicated desktop charger that will charge one (1) or two (2) of the following:
-
MBITR (AN/PRC-148) battery in 4 hours or less
-
BT-70716BE or BT-70716BG batteries in 4 hours or less
-
-
Powered from 100-240Vac, 50/60Hz; or 10-32Vdc, 60W max.
-
Simple solution for the user who does not require a bulk or multi-station charger.
-
Optional AC Power Cord configurations available.
-
BTP-592212-EU (EU Terminal)
-
BTP-592212-UK (UK Terminal)
-
BTP-592212-AU (AU Terminal)
-
-

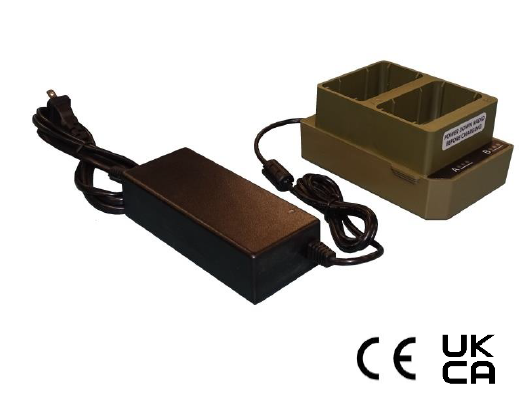

See BTC-70716-1CE for CE and UKCA Compliant version
Dimensions
Other
| SKU | BTC-70716-1 |
|---|---|
| Case Materials/Colors | High impact ABS/Olive Drab |
| Power Requirements | 100-240V AC, 50/60 Hz, 10V-32V DC, 60W max |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
