SKU
BTC-70716-1CE
Dual Desktop AN/PRC-148, CE/UKCA

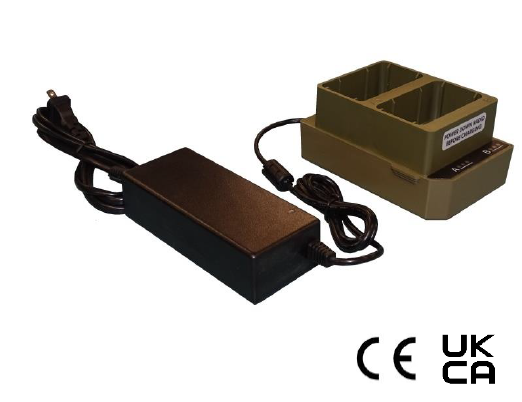

Dual Desktop AN/PRC-148 Charger
This dedicated MBITR (AN/PRC-148) battery desktop charger has a built in status of charge indicators and can charge one (1) to two (2) BT-70716Bx or the MBITR batteries with or without the radio. This low cost AC charger is low profile.
- Dedicated desktop charger that will charge one (1) or two (2) of the following:
- MBITR (AN/PRC-148) battery in 4 hours or less
- BT-70716BE or BT-70716BG batteries in 4 hours or less
- Powered from 100-240Vac, 50/60Hz, 60W max
- Powered from 10-32Vdc, 60W max
- Simple solution for the user who does not require a bulk or multi-station charger.
- Includes NA AC Power Cord
- Optional AC Power Cord configurations available:
- BTP-592212-EU (EU Terminal)
- BTP-592212-UK (UK Terminal)
- BTP-592212-AU (AU Terminal)
- Optional AC Power Cord Kits available:
- BTK-70716-EU
- BTK-70716-UK
- BTK-70716-AU
- CE and UKCA Compliant
Dimensions
Length: Charger: 3.5 in (89 mm), Power Supply: 3.8 in (97 mm), Cable: 72
Width: Charger: 5.5 in (140 mm), Power Supply: 2.4
Height: Charger: 2.8 in (60 mm), Power Supply 1.3
Weight: 1.5 lbs.
Other
| SKU | BTC-70716-1CE |
|---|---|
| Case Materials/Colors | High impact ABS/Olive Drab |
| Power Requirements | 100-240V AC, 50/60 Hz, 10V-32V DC, 60W max |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
