SKU
BTC-70791-MR
Mid Rate x90
NSN
6130-01-606-3739
BTC-70791-MR

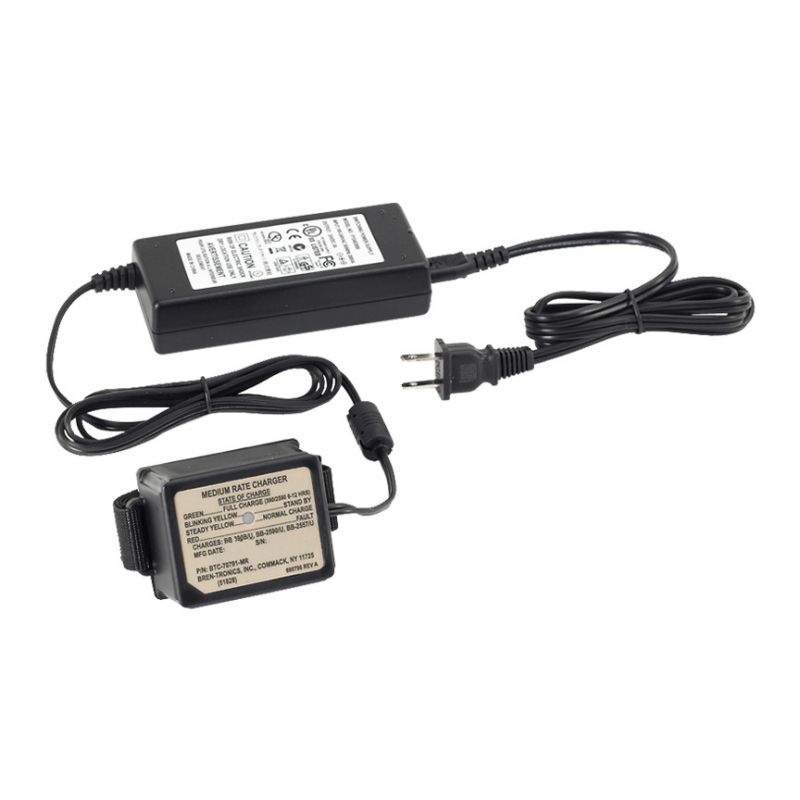

Dedicated single-station charger that will charge the BB-390B/U, BB-2557/U and the BB-2590/U batteries.
- Dedicated single-station charger that will charge to 16.5V each battery section of the following:
- BB-2590/U (BT-70791A, BT-70791BK or BT-70791CK) in 5.5 hours or less
- BB-390B/U (BT-70790B) in 10.5 hours or less
- BB-2557/U (BT-70757BK) in 2.5 hours or less*
- Powered from 100-240Vac, 200VA, 50/60Hz.
- Simple solution for the user who does not require a bulk or multi-station charger.
- 6ft IEC C7 AC Power Cord with US connector (BTP-592212-US) included with charger.
- Optional AC Power Cord configurations available
- BTP-592212-EU (EU Terminal)
- BTP-592212-UK (UK Terminal)
- BTP-592212-AU (AU Terminal)
- RoHS compliant
*Additional higher capacity versions of the BB-2590/U and BB-2557/U are available and can be charged with slightly longer charge times.
Dimensions
Length: Charger: 3.3 in (84 mm), Power Supply: 5.2 in (132 mm), AC Input Cable: 36.0 in (914 mm), Supply to charger Cable: 53.0
Width: Charger: 2.2 in (56 mm), Power Supply: 2.3
Height: Charger: 2.0 in (51 mm), Power Supply: 1.2
Weight: 1.1 lbs.
Other
| SKU | BTC-70791-MR |
|---|---|
| Case Materials/Colors | High Impact ABS / Black |
| Power Requirements | 100V-240Vac, 200VA, 50/60Hz |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
