SKU
BTC-70791-1

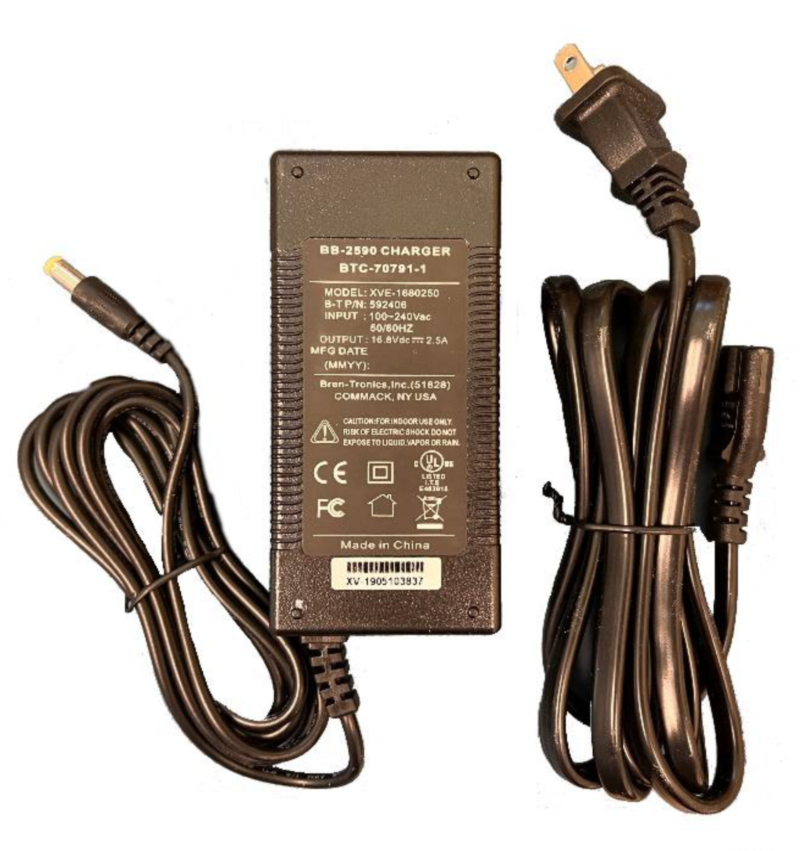

Wall Plug Charger (x90 Cap)
BTC-70791-1
Works with the following to charge BT-70791xx batteries:
- BTP-70791-AC2*
- BTP-70791-AC3*
* Sold seperately
- The BTC-70791-1 Charger Module, when used in conjunction with the BTP-70791-AC2 and BTP-70791-AC3 inverters, charges the BT-70791xx Family of BB-2590/U batteries to 16.8V.
- Powered from 100-240Vac, 50/60Hz, 55W
- 6ft IEC C7 AC Power Cord with US connector (BTP-592212-US) included with charger. Optional AC Power Cord configurations available:
‒ BTP-592212-EU (EU Terminal)
‒ BTP-592212-UK (UK Terminal)
‒ BTP-592212-AU (AU Terminal) - CE Compliant
Dimensions
Length: 4.33
Width: 1.97
Height: 1.18
Weight: 0.5 lbs.
Other
| SKU | BTC-70791-1 |
|---|---|
| Case Materials/Colors | Plastic/Black |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
