SKU
BTC-70836 (PP-8481B/U)
VMC Charger
Military #
PP-8481B/U
NSN
6130-01-527-2726

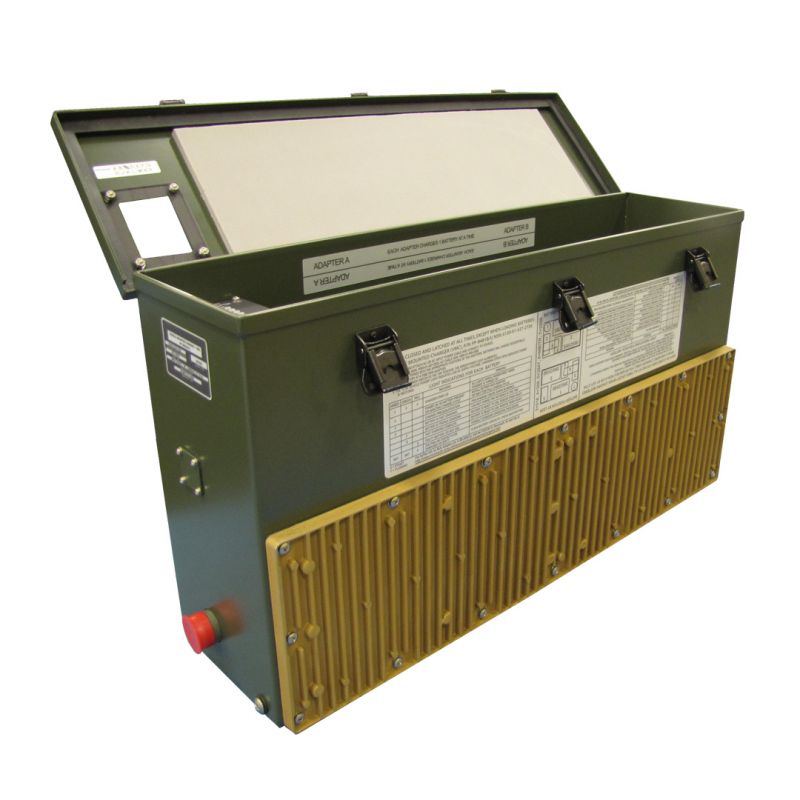

Vehicle Mounted Charger (VMC)
Portable battery charger designed for military vehicles. Specifically designed to withstand the rigors associated with operating within a moving vehicle.
The BTC-70838-10 is a state of the art portable battery charger designed for military vehicles to charge batteries that are part of the Soldier Modernization Program (SMP)
- Specifically designed to withstand the rigors associated with operating within a moving vehicle
- The charger is capable of charging up to (10) BT-70838xx* or BT-70838-1/3xx* or BT-70838-2/3xx*+ series batteries simultaneously to 90% capacity in approximately14 hours and 100% capacity in approximately 16 hours with an easy to follow LED lighting sequence
- Includes Built-in-Test, Low Vehicle Power sensing, as well as over current and short circuit protection
- Powered from 22-28Vdc, 15A, 90-260Vac, 47-420Hz, 375VA
* Higher capacity versions of the BT-70838xx, BT-70838-1/3xx and BT-70838-2/3xx batteries are available and can be charged with slightly longer charge times. SMP Adapter (BTA-70838-6) is required
Dimensions
Length: 27
Width: 14
Height: 8
Other
| SKU | BTC-70836 |
|---|---|
| Case Materials/Colors | Powder-Coated Welded Aluminum/Olive Drab |
| Power Requirements | 22V-28V DC, 15A, 90-260V AC, 47 to 420 Hz, 375 VA |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
