SKU
BTC-70903-MR1
Med Rate xx90 Full Charge
BTC-70903-MR1

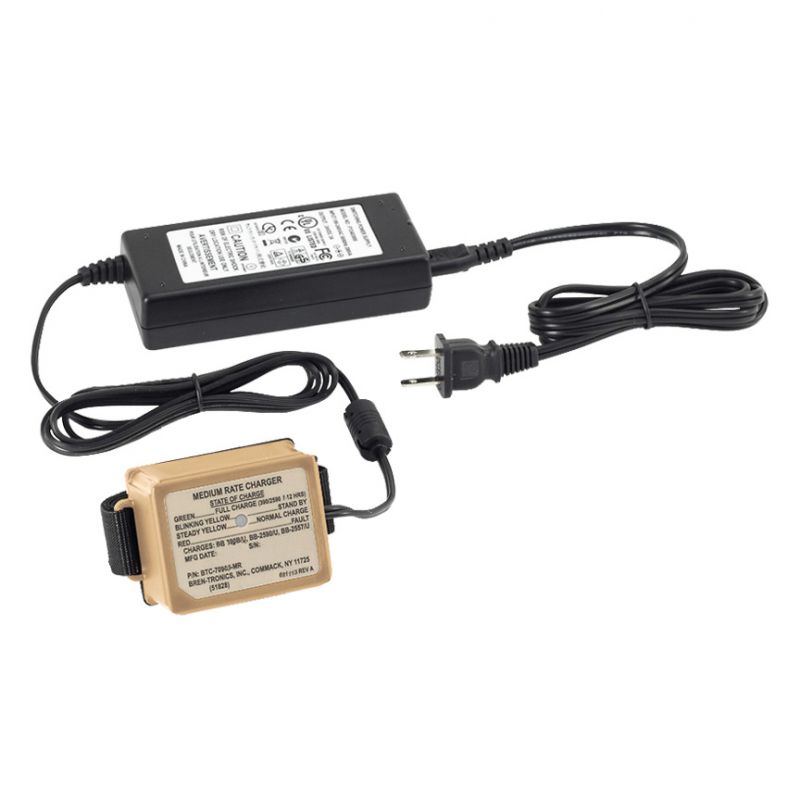

Single-station charger that will charge the BB-390B/U, BB-2557/U and the BB-2590/U batteries. Charger provides longer equipment runtimes by providing an additional 7% capacity into the BB-2590/U. Charge times for a depleted BB-2590/U are 7.5 hours depending on battery model.
- Dedicated single-station charger that will charge to 16.8V each battery selection of the following:
- BB-2590/U (BT-70791A, BT-70791BK, or BT-70791CK) in 7.5 hours or less*
- BB-390B/U (BT-70790B) in 14 hours or less
- BB-2557/U (BT-70757BK) in 3.5 hours or less*
- Powered from 100-240Vac, 200VA, 50/60Hz.
- Simple solution for the user who does not require a bulk or multi-station charger.
- The BTC-70903-MR1 will charge the BB-2590/U to 33.6V compared to the standard 33.0V thus achieving 7% more capacity.
- 6ft IEC C7 AC Power Cord with US connector (BTP-592212-US) included with charger. Optional AC Power Cord configurations available:
- BTP-592212-EU (EU Terminal)
- BTP-592212-UK (UK Terminal)
- BTP-592212-AU (AU Terminal)
- RoHS compliant
*Higher capacity versions of the BB-2590/U and BB-2557/U will have slightly longer charge time.
Dimensions
Length: Charger: 3.3 in (84 mm), Power Supply: 5.2 in (132 mm), AC Input Cable: 36.0 in (914 mm), Supply to Charge Cable: 53.0
Width: Charger: 2.2 in (56 mm), Power Supply: 2.3
Height: Charger: 2.0 in (51 mm), Power Supply: 1.2
Weight: 1.1 lbs.
Other
| SKU | BTC-70903-MR1 |
|---|---|
| Case Materials/Colors | High Impact ABS / Black and Tan |
| Power Requirements | 100V-240Vac, 200VA, 50/60Hz |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
