SKU
BTK-70819-1
SPC Lite Charger Kit (Standard Charge)

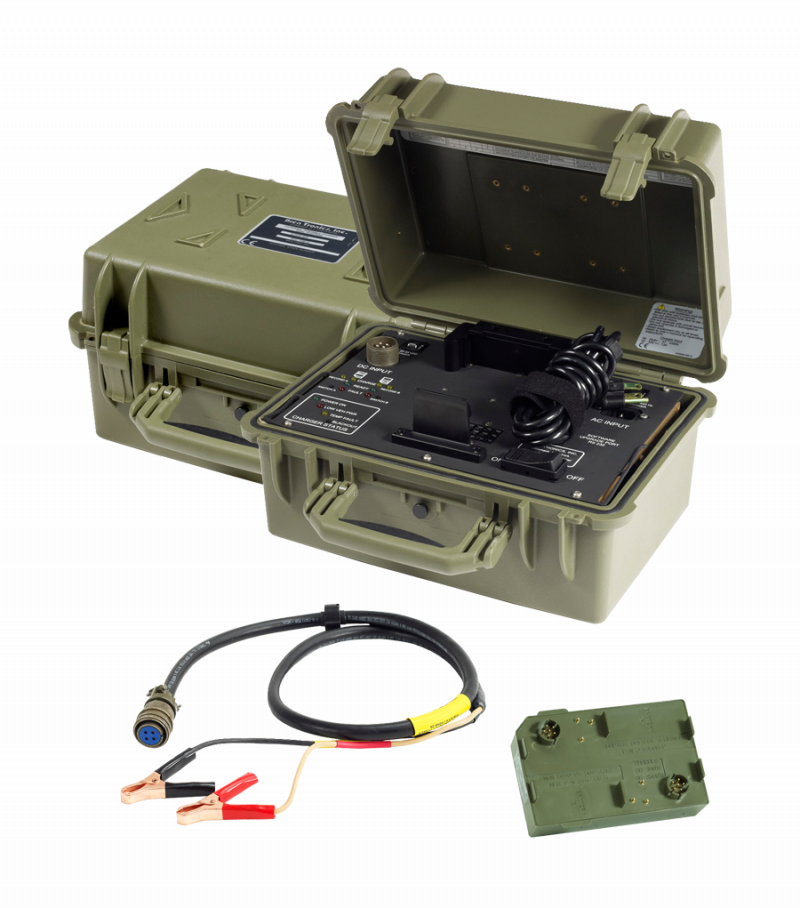

Soldier Portable Charger Lite (SPC) Kit w/ Standard Charge X90 Adapter
This kit includes the SPC Lite portable battery charger and one (4) x90 battery adapter for charging 2 BB-2590/U or BB-390B/U batteries simultaneously.
- Soldier Portable Charger Lite kit with X90 adapter, AC and DC power cables.
- State of the art portable battery charger designed for field or depot use.
- Charges 2 batteries simultaneously with an easy to follow LED lighting sequence.
- Charging software is upgradeable in the field or lab environment through the RS-232port.
- CE Qualified.
- Will charge and maintain a large range of military communication and electronics batteries using a designated adapter.
- Includes a recondition feature for Nickel battery revitalization or Li-Ion destorage.
- Powered from 22V-33V DC, 13A, 90-260V AC, 47 to 440 Hz.
Dimensions
Length: 13.73 +/- 0.15
Width: 10.48 +/- 0.15
Height: 7.65 +/- 0.15
Weight: 17.0 lbs.
Other
| SKU | BTK-70819-1 |
|---|---|
| Case Materials/Colors | Charger: Solid Polypropylene/Olive Drab, Adapter: Modified ABS Plastic/Oliver Drab, Cables: Rubber w/ Metal Connector/Black |
| Power Requirements | 90V-260V AC (47-440 Hz), 22V-36V DC (13A) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
