SKU
BTK-70822-MR-x
Med Rate Charger Kit
BTK-70822-MR-x

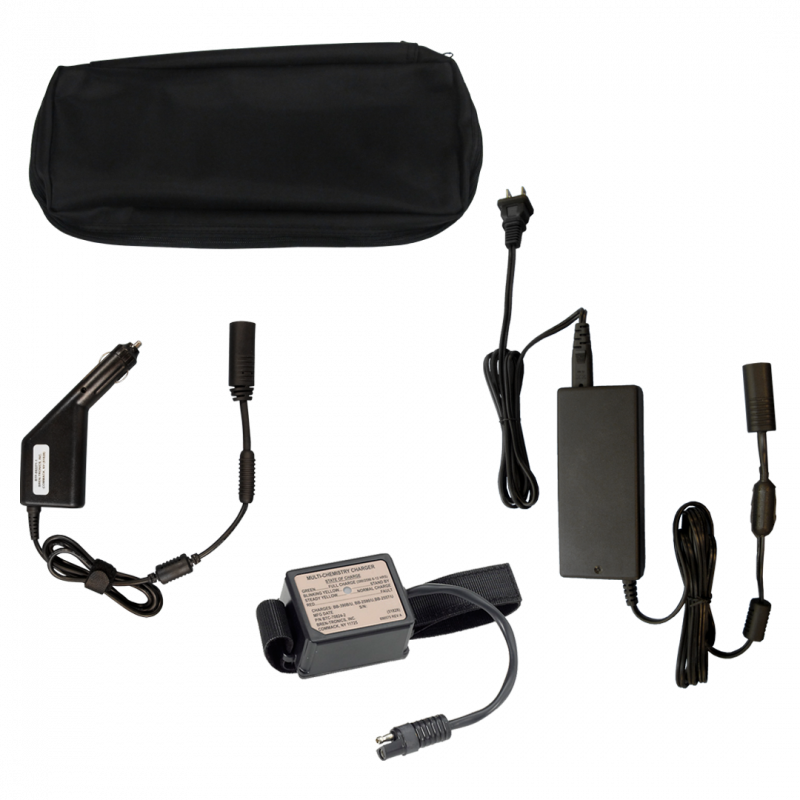

NEW kit leverages trailer hitch connection to provide charging solutions via AC/DC and solar panel. Includes: single-station charger for 2590/390/2557 batteries, AC/DC power adapter, cigarette lighter adapter & carrying bag.
- Dedicated single-station charger with trailer hitch input that will charge the following batteries:
- BB-2590/ U (BT-70791A, BT-70791BK or BT-70791CK) in 5.5 hours or less*
- BB-390B/U (BT-70790B) in 10.5 hours or less
- BB-2557/U (BT-70757BK) in 2.5 hours or less*
*Additional higher capacity versions of the BB-2590/U and BB-2557/U are available and can be charged with slightly longer charge times
- Powered from 100-240Vac, 3.0A, 50/60Hz
- Powered from 10-16Vdc, max 10A
- Can be used with 60W Solar Panel, 15V (BTP-70986-1x)
- DC power interface has a USB Type I connector available for charging.
- Simple solution for the user who does not require a bulk or multi-station charger
- RoHS compliant
Supported AC Plug Configurations
Model # |
Description |
|---|---|
| -1 | United States |
| -2 | European Union |
| -3 | United Kingdom |
| -4 | Australia |
Dimensions
Length: Charger: 2.6 in (66 mm), AC Power Supply: 5.1 in (130 mm), 12Vdc Power Supply: 6.3 in
Width: Charger: 2.1 in (53 mm), AC Power Supply: 2.2 in (56 mm), 12Vdc Power Supply: 2.1 in
Height: Charger: 1.5 in (38 mm), AC Power Supply: 1.2 in (30 mm), 12Vdc Power Supply: 0.8 in
Other
| SKU | BTK-70822-MR-x |
|---|---|
| Case Materials/Colors | Modified ABS Plastic/Black |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
