SKU
BT-70939M-APH (6T)

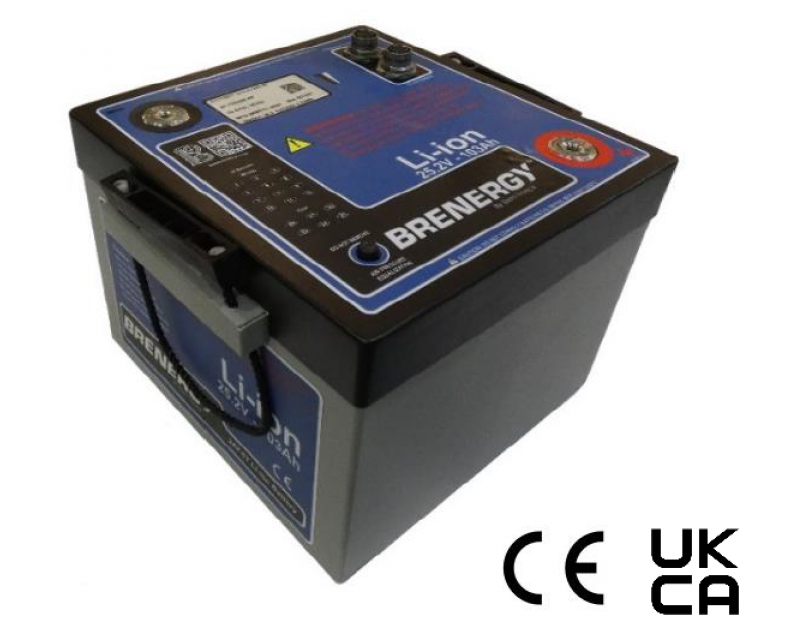

Brenergy™ 6T Metal Battery with Internal Heater
Military #
6T
24V High Rate Energy 6T Rechargeable Lithium-Ion Battery, M8
- CAN Bus Communication (Daisy Chain Capable
- Energy Capacity of 2.7kWh
- Instantly available 1100A @ -18°C, 400A @ -40°C with no pre-heat required
- Electronically Protected
- Light Weight
- Long Cycle Life
- Designed to interface with MIL-STD-1275 compliant vehicle charging systems
- Internal Heater for EXTREME cold temperation operation
- Optional Terminal Posts (BTK-70939M-TR2 SAE POST KIT)
- CE and UKCA Compliant
Dimensions
Length: 10.0 in (254 mm)
Width: 10.5 in (267 mm)
Height: 9.05 in (230 mm) including connectors
Weight: 52.0 lbs.
Other
| SKU | BT-70939M-APH |
|---|---|
| Nominal Voltage | 25.2 |
| Ah | 103 |
| Maximum Voltage | 29.4V |
| Case Materials/Colors | Metal |
| Operating Temperature | Discharge: -46°C to +71°C (-51°F to +160°F); Charge: -20°C to +71°C (-4°F to +160°F) |
| Storage Temperature | -54°C to +88°C (-65°F to +190°F) |
| Connector | POS – Female: 3/8-16 UNC-2B (13mm deep); NEG – Female: 5/16-18 UNC-2B (13mm deep); Optional SAE Posts (BTK-70939M-TR2 Post Kit) |
| State of Charge Indicator | No |
| Battery Type | Rechargeable |
| Smart Battery | CAN |
