SKU
BT-70242-1

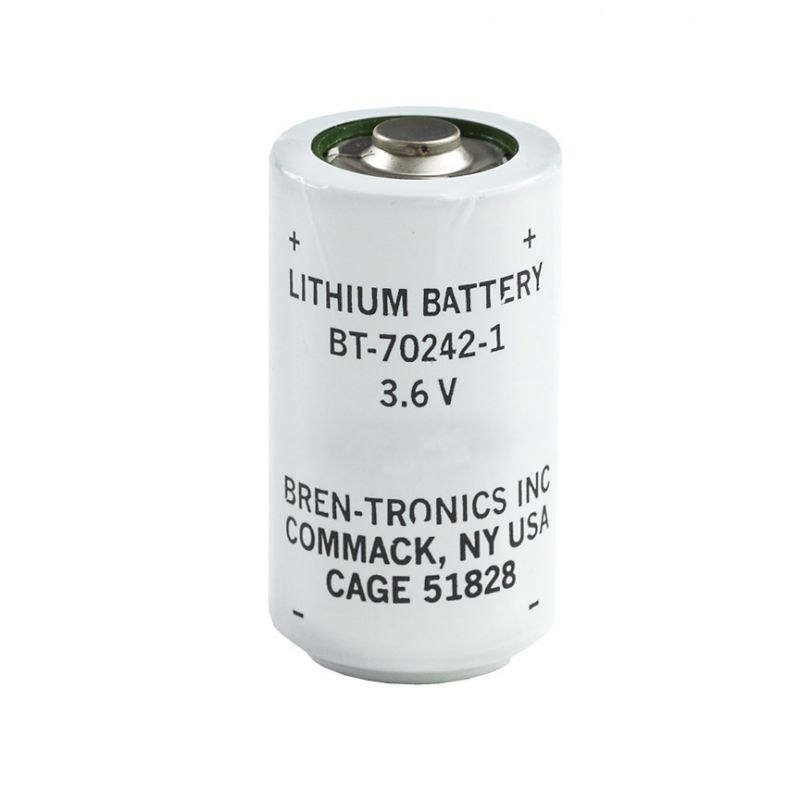

Li Thionyl Chloride, 13.0 Ah Primary, NSN 6135-01-357-0621
NSN
6135-01-357-0621
Chemistry:
Li-SOCl2
13.0 Ah, Non-Rechargeable Lithium-Thionyl Chloride Battery
• Internal 5A Fuse
• 5 year storage @ 21°C & 50% R.H. capacity will be greater than 97%
Dimensions
Length: 2.4
Width: 1.3
Other
| SKU | BT-70242-1 |
|---|---|
| Nominal Voltage | 3.6V |
| Ah | 13 |
| Operating Temperature | -55°C to +85°C (-67°F to +185°F) |
| Storage Temperature | -55°C to +55°C (-67°F to +131°F) Recommended +30°C max |
| Connector | Pos (+): metal button; Neg (-): metal disc |
| State of Charge Indicator | No |
| Battery Type | Primary |
