SKU
BT-70464-1
LRAS Box
NSN
6160-01-494-3671

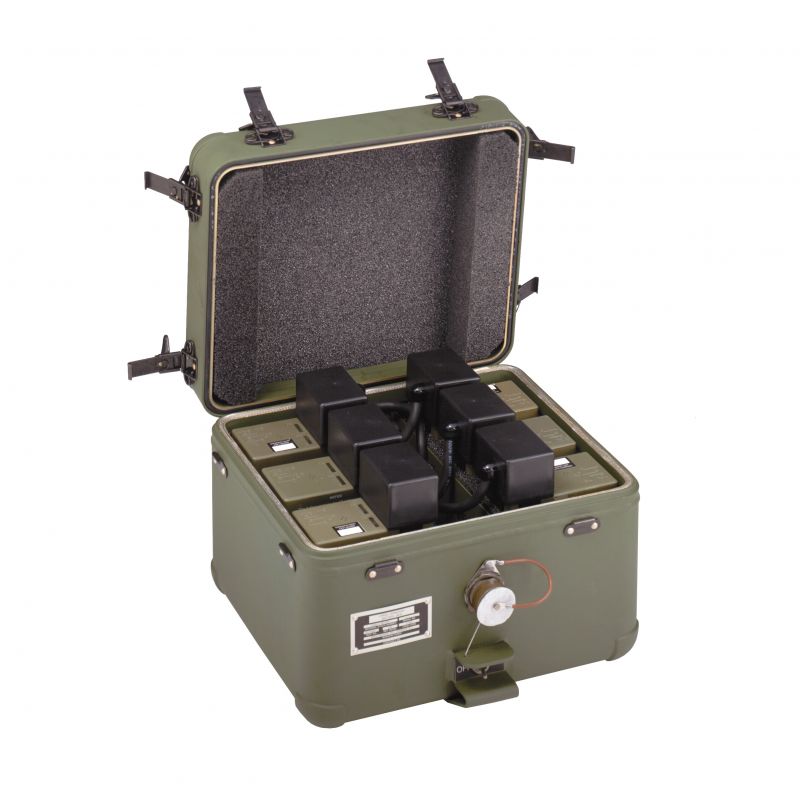

Dismount Battery Box, 24VDC
Remote Power Source for the LRAS3 Surveillance System. Holds up to six (6) BB-390B/U or BB-2590/U batteries.
• Designed for field deployment in conjunction with equipment that requires significant amounts of power
• Consists of a ruggedized battery box that connects six (6) BB-390/BU or BB-2590/U batteries in parallel configuration, providing a nominal 24V dc output
• Works as a discharge only power system. It requires the removal of the six (6) batteries for recharge
• Also available in desert tan color
Dimensions
Length: 15 +/- 0.01
Width: 12 +/- 0.01
Height: 13.6 +/- 0.01
Other
| SKU | BT-70464-1 |
|---|---|
| Storage Temperature | –55°C to +71°C (-67°F to +160°F) |
| Case Materials/Colors | Aluminium w/ Epoxy Powder Coat / Olive Drab |
| cable | No |
