SKU
BT-70492BK
Sophie
Chemistry:
Li-ion

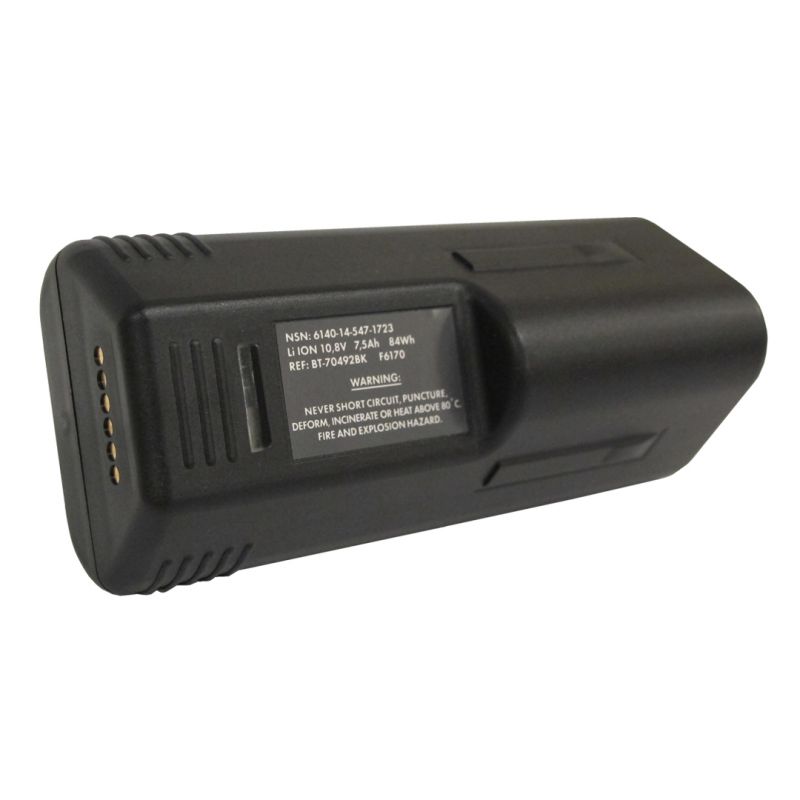

7.5 Ah, Rechargeable Lithium-Ion Battery
High capacity and performance hand-held thermal imager rechargeable battery. Typically used in the Sophie thermal imager and Mirabel thermal camera. Additional capacities available.
• Complies with TI/Benchmarq DQ Interface
• UN/DOT 38.3 Rating: 84 Wh
• Comparable to: BT-70492, BT-70492A, BT-70492BE, BT-70492Cx, BT-70477, BT-70724,BT-70900Cx, AA80A,
and AA86A
• Absolute state of charge indicator
• Extended autonomy and life for mobile systems
• Maintenance-free
• High Capacity
Typically used in Thermal Imager:
• Sophie
• Mirabel
Dimensions
Length: 5.75
Width: 2.5
Height: 2.05
Other
| SKU | BT-70492BK |
|---|---|
| Nominal Voltage | 10.8V |
| Ah | 7.5 |
| Maximum Voltage | 12.6V |
| Operating Temperature | -31°C to +55°C (-24°F to +131°F) |
| Storage Temperature | +0°C to +35°C (+32°F to +95°F) Allowable -46°C to +71°C (-51°F to +160°F) |
| Connector | Two (2) flat contacts on bottom side of case. |
| State of Charge Indicator | Yes |
| Battery Type | Rechargeable |
