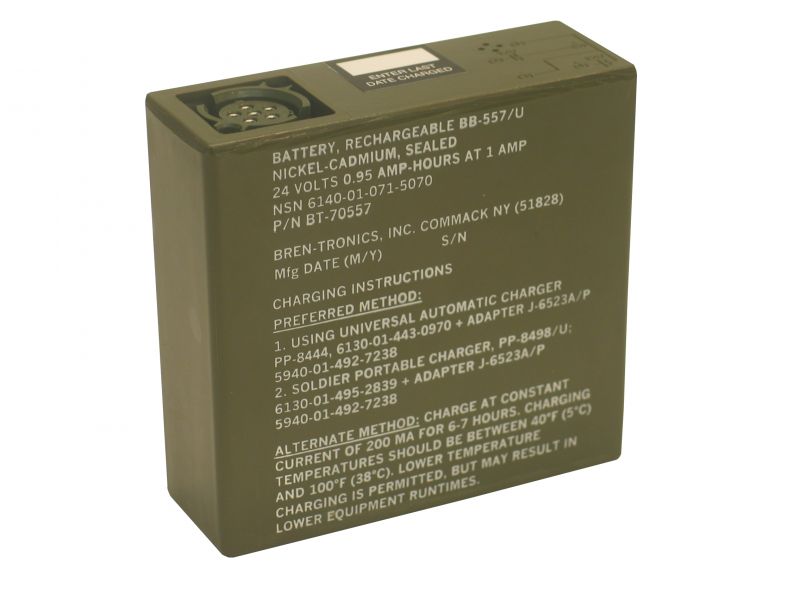

SKU
BT-70557 (BB-557/U)
BB-557/U
Military #
BB-557/U
NSN
6140-01-071-5070
Chemistry:
Ni-Cd
Rechargeable Nickel Cadmium Battery
Typically Used in: AN/PSG-2A and 2B (Tacfire), Data Acquisition Unit (DAU, DTS)
• Comparable to: BB-2557/U, BT-70757, and BA-5557/U
Typically used in:
• AN/PSG-2A and 2B (Tacfire)
• Data Acquisition Unit (DAU, DTS)
Dimensions
Length: 4.1
Width: 1.4
Height: 3.9
Other
| SKU | BT-70557 |
|---|---|
| Nominal Voltage | 12.0V, 24.0V |
| Ah | 0.95 |
| Maximum Voltage | 30.0V, Two (2) Sections each 15.0V |
| Operating Temperature | –20°C to +55°C (-4°F to +131°F) |
| Storage Temperature | -40°C to +40°C (-40°F to 104°F) |
| Connector | Floating type per U.S. Army DWG # SC-C-179495 |
| State of Charge Indicator | No |
| Battery Type | Rechargeable |
