SKU
BT-70780AT (BB-2800/U)
BB-2800/U
Military #
BB-2800/U
NSN
6140-01-490-5372
Chemistry:
Li-ion

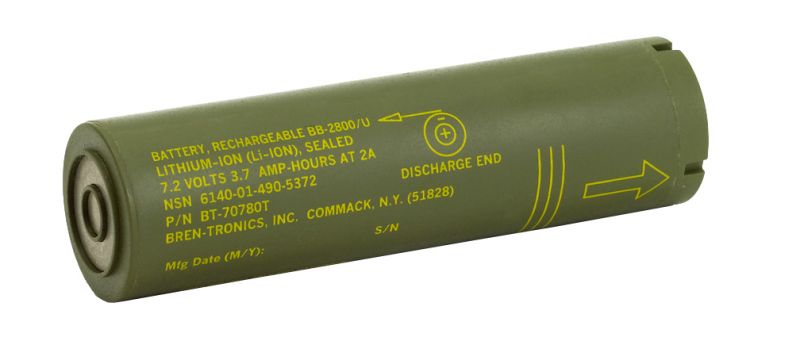

Rechargeable Lithium-Ion Battery
Typically used in FED (AN/PSG-7), SLGR (AN/PSN-10), PLGR (AN/PSN-11), SAGR (AN/ASN-169), CAM and ICAM.
• Single Wire Battery Communication
• UN/DOT 38.3 Rating: 32 Wh
• Comparable to: BA-5800/U
• Absolute State of Charge Indicator
Typically used in:
• SLGR (AN/PSN-10)
• PLGR (AN/PSN-11)
• FED (AN/PSG-7)
• SAGR (AN/ASN-169)
• CAM and ICAM
Dimensions
Length: 5.1
Width: 1.4
Weight: 0.6 lbs.
Other
| SKU | BT-70780AT |
|---|---|
| Nominal Voltage | 7.2V |
| Ah | 4.2 |
| Maximum Voltage | 8.4V |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +40°C (-40°F to +104°F) |
| Connector | Flat Circular Contacts as per MIL-PRF-32-52/3 |
| State of Charge Indicator | Yes |
| Battery Type | Rechargeable |
