SKU
BT-70790B
BB-390B/U
Military #
BB-390B/U
NSN
6140-01-490-4317
Chemistry:
Ni-MH

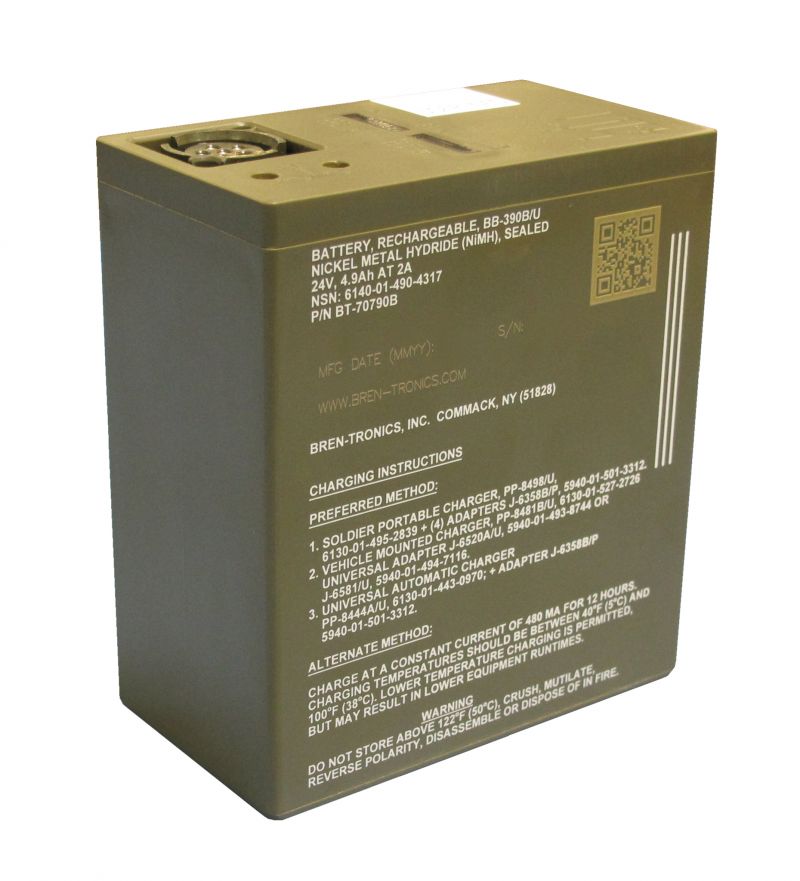

Rechargeable Nickel Metal Hydride Battery
Typically used in Robots, Surveillance/Sensors, SINCGARS & ATCS (AN/PRC-104, 119), and FALCON (AN/PRC-138,117) Radios.
Designed and qualified to MIL-PRF-32052/1 in the USA.
• Comparable to: BT-70790, BT-70791A, BT-70791Bx, and BT-70791Cx
Typically used in:
• Robots
• Surveillance / Sensors
• SINCGARS & ATCS (AN/PRC-104, 119)
• FALCON (AN/PRC-138, 117)
Dimensions
Length: 4.4
Width: 2.4
Height: 5
Weight: 4.0 lbs.
Other
| SKU | BT-70790B |
|---|---|
| Nominal Voltage | 12.0V, 24.0V |
| Ah | In 24V Mode: 4.9 Ah, In 12V Mode: 9.8 Ah |
| Maximum Voltage | 31.0V, Two (2) Sections each 15.5V |
| Operating Temperature | –20°C to +55°C (-4°F to +131°F) |
| Storage Temperature | -40°C to +50°C (-40°F to +122°F) |
| Connector | Floating type per U.S. Army DWG # SC-C-179495 |
| State of Charge Indicator | Yes |
| US Gov Spec | MIL-PRF-32052/1 |
| Battery Type | Rechargeable |
