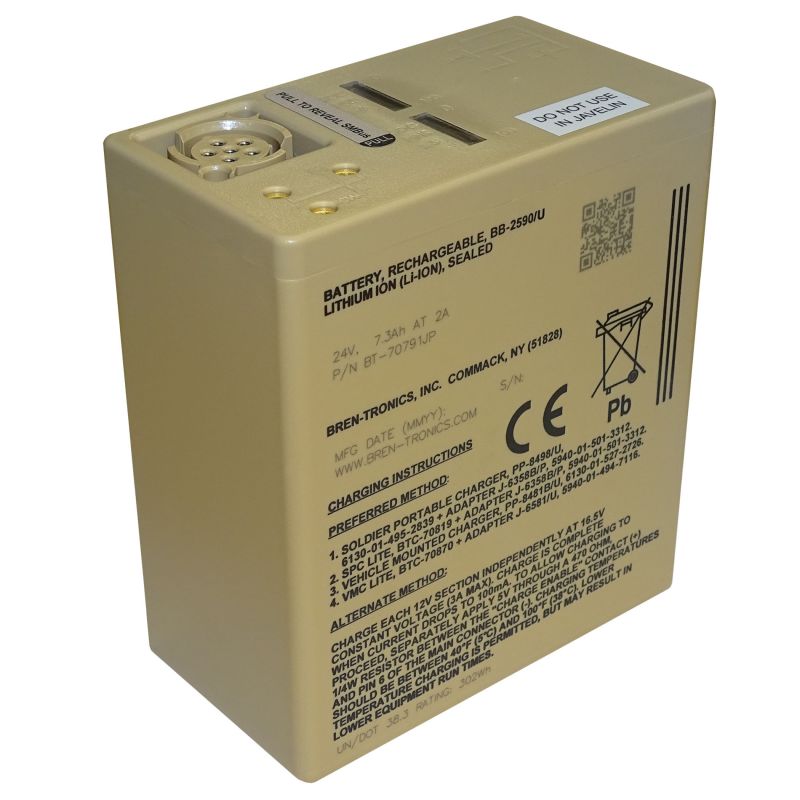

BB-2590/U, 216 Wh, Ultra-Low Temp
7.3 Ah, Rechargeable Lithium-Ion Battery
Designed for high power and ultra-low temperature requirements up to -40°C performance. Typically used in over 71 different devices such as Communications gear (SINCGARS, AN/PRC-117, etc.), Robots, and Jammers.
Designed in the USA.
• Complies with SMBus v1.1 and SBData v1.1
• UN/DOT 38.3 Rating: 216 Wh
• Comparable to: BT-70791A, BT-70701Bx, BT-70791Cx, and BT-70791Jx
• Enhanced low temperature performance, operates as low as -40°C
• Designed, manufactured, and tested to MIL-PRF-32052/1 in the USA
• Absolute state of charge indicator
• Protected by one or more U.S. Patents. See: www.bren-tronics.com/patents
• High Charge Rate (10A max)
• HIgh Discharge Rate 13A Continuous/30A Pulse
• CE Compliant
Typically used in:
• Robots
• Surveillance / Sensors
• SINCGARS & ASIP (AN/PRC-104, 119) Radios
• FALCON (AN/PRC-138, 117) Radios
Dimensions
Other
| SKU | BT-70791JP |
|---|---|
| Nominal Voltage | 14.4V, 28.8V |
| Ah | In 24V Mode: 7.3 Ah, In 12V Mode: 14.6 |
| Maximum Voltage | 16.8V |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Storage Temperature | -40°C to +40°C (-40°F to +104°F) |
| Connector | Floating type per U.S. Army DWG # SC-C-179495 |
| State of Charge Indicator | Yes |
| US Gov Spec | MIL-PRF-32052/1 |
| Battery Type | Rechargeable |
| Smart Battery | SMBus |
