SKU
BT-70867BG (LI-80)
LI-80, 6.6 Ah
Military #
LI-80
Chemistry:
Li-ion

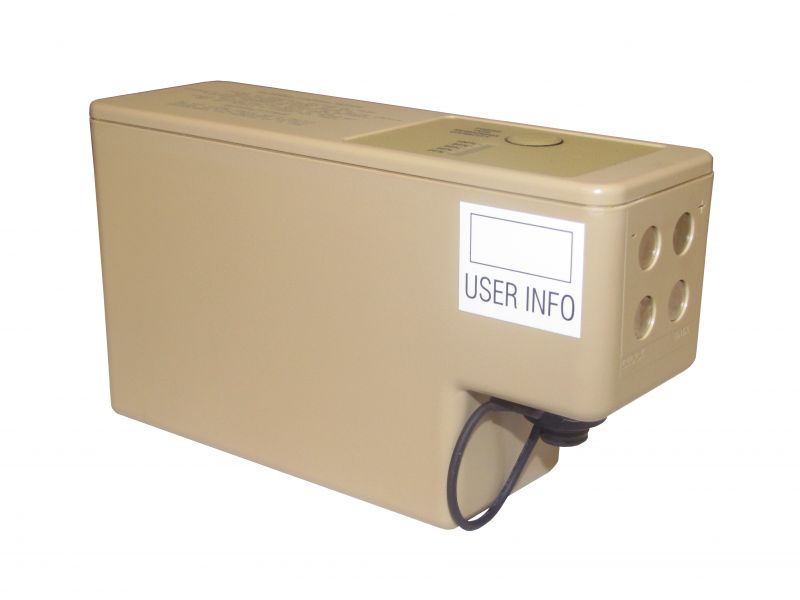

6.6 Ah, Rechargeable Lithium-Ion Battery
High energy density battery for use in soldier based applications. Adaptable to hand-held military radios and other communications equipment. Meets or exceeds all rechargeable durability specifications.
• Complies with SMBus v1.1 and SBData v1.1
• Comparable to: LI-80, UBBL06, BT-70868Bx, and UBBL08
• Absolute state of charge indicator
Typically used in:
• Worldwide Soldier Modernization Programs
Dimensions
Length: 5.20 +/- 0.01
Width: 1.66 +/- 0.01
Height: 2.90 +/- 0.01
Other
| SKU | BT-70867BG |
|---|---|
| Nominal Voltage | 14.4V |
| Ah | 6.6 |
| Maximum Voltage | 16.8V |
| Operating Temperature | -20°C to +55°C (-4°F to +131°F) |
| Storage Temperature | -40°C to +40°C (-40°F to +104°F) |
| Connector | Glenair Part # 807 216 07ZNU6 6DY |
| State of Charge Indicator | Yes |
| Battery Type | Rechargeable |
| Smart Battery | SMBus |
| Brenergy | No |
