SKU
BT-70910CZ (BB-2525/U)

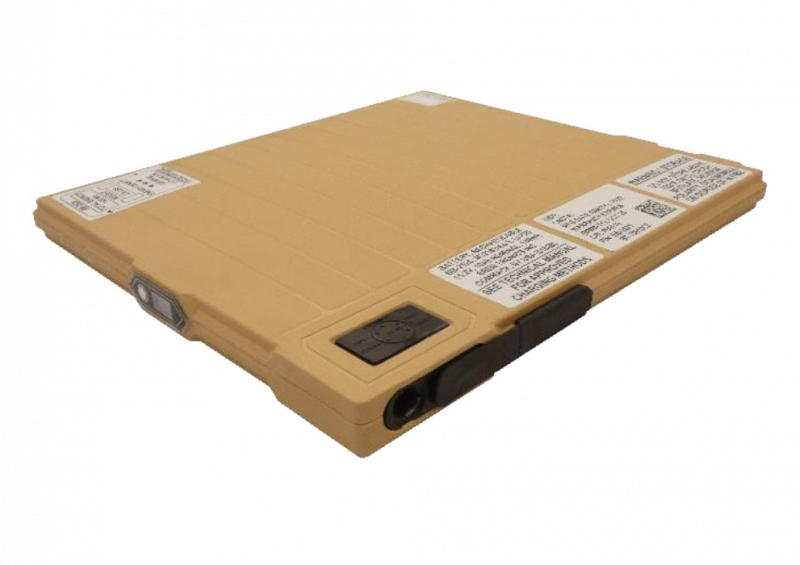

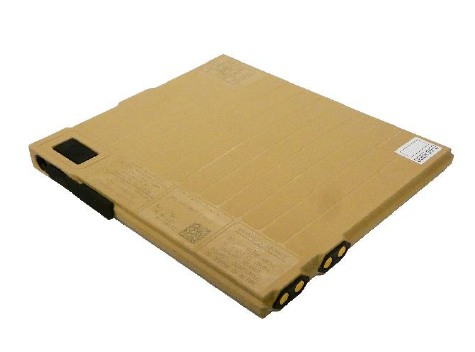

Conformal Wearable Battery (CWB), 148 Wh
Military #
BB-2525/U
NSN
6130-01-711-0104
Chemistry:
Li-ion
Introducing the Bren-Tronics CWB (Conformal Wearable Battery). The Bren-Tronics BT-70910CZ is the commercial equivalent of the BB-2525/U and is designed to meet MIL-PRF 32383. The CWB is a lightweight, thin, battery that conforms to the user and ballistic protective plates.
- Complies with SMBus v1.1 and SBData v1.1
- UN/DOT 38.3 Rating: 148Wh
- USB Type-A DCP
- Digital Display with Tactile Push Button Switch (TPBS)
- Designed to meet U.S. MIL-PRF-32383
- Visit: www.bren-tronics.com/patents for patent information
Dimensions
Length: 8.7 in (221 mm)
Width: 7.66 in (195 mm)
Height: 0.7 in (18 mm)
Weight: 2.6 lbs.
Other
| SKU | BT-70910CZ |
|---|---|
| Nominal Voltage | 15.0V |
| Ah | 10.0 |
| Maximum Voltage | 17.0V |
| Case Materials/Colors | Tan |
| Operating Temperature | –30°C to +55°C (-22°F to +131°F) |
| Storage Temperature | –32°C to +71°C (-26°F to +160°F) |
| Connector | 7 PIN Nett Warrior Connector |
| State of Charge Indicator | Yes |
| US Gov Spec | Designed to meet MIL-PRF-32383/4X |
| Battery Type | Rechargeable |
| Smart Battery | SMBus |
