SKU
BT-70915-1/3AE
CES 1/3, 2.8 Ah
Chemistry:
Li-ion

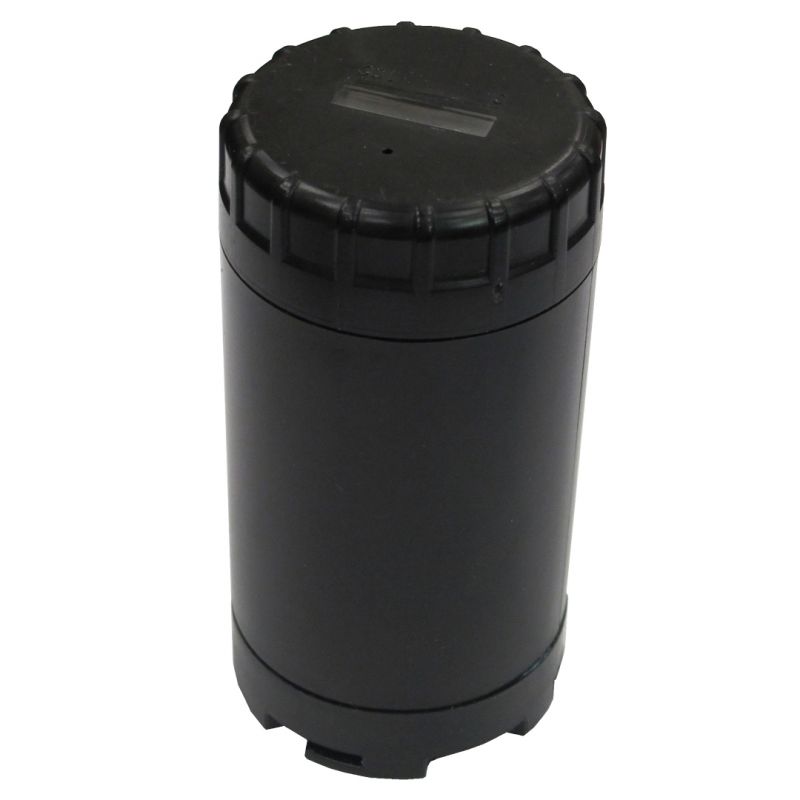

2.8 Ah, Rechargeable Lithium-Ion Battery
Typically used to power portable optical devices.
• Complies with SMBus v1.1 and SBData v1.1
• Comparable to: BT-70915Ax, BT-70915-2/3Ax, and BT-70915-1/3AG
• Enhanced cold temperature performance
• Absolute state of charge indicator
• Tested and certified to meet requirements of battery safety standard IEC 62133
• CE Compliant
Typically used in:
• Portable Optronics
• GPS Receivers
• Unmanned Ground Vehicles (UGV - small robots)
• Forward Entry Devices
Dimensions
Length: 1.748 +/- 0.020
Width: 1.748 +/- 0.020
Height: 3.450 +/- 0.02
Other
| SKU | BT-70915-1/3AE |
|---|---|
| Nominal Voltage | 10.8V |
| Ah | 2.8 |
| Maximum Voltage | 12.6V |
| Operating Temperature | –32°C to +60°C (-25.6°F to +140°F) |
| Storage Temperature | –40°C to +55°C (-40°F to +131°F) |
| Connector | BT Designed Mating Connector |
| State of Charge Indicator | Yes |
| Battery Type | Rechargeable |
