SKU
BT-70915AG
CES, 9.6 Ah
Chemistry:
Li-ion

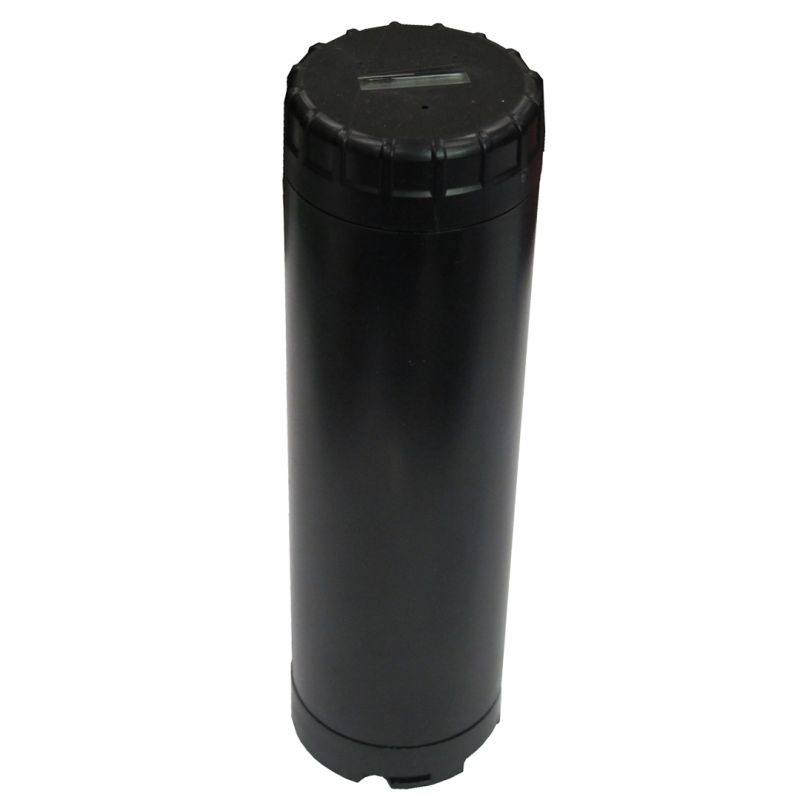

9.6 Ah, Rechargeable Lithium-Ion Battery
Typically used to power portable optical devices.
• Complies with SMBus v1.1 and SBData v1.1
• UN/DOT 38.3 Rating: 110Wh
• Comparable to: BT-70915Ax, BT-70915-1/3Ax, and BT-70915-2/3Ax
• Enhanced cold temperature performance
• Absolute state of charge indicator
Typically used in:
• Portable Optronics
Dimensions
Length: 1.748 +/- 0.020
Width: 1.748 +/- 0.020
Height: 8.670 +/- 0.020
Weight: 1.1 lbs.
Other
| SKU | BT-70915AG |
|---|---|
| Nominal Voltage | 10.8V |
| Ah | 9.6 |
| Maximum Voltage | 12.6V |
| Operating Temperature | -32°C to +60°C (-25.6°F to +140°F) |
| Storage Temperature | -40°C to +55°C (-40°F to +131°F) |
| Connector | BT Designed Mating Connector |
| State of Charge Indicator | Yes |
| Battery Type | Rechargeable |
| Brenergy | No |
