SKU
BT-70980A-50

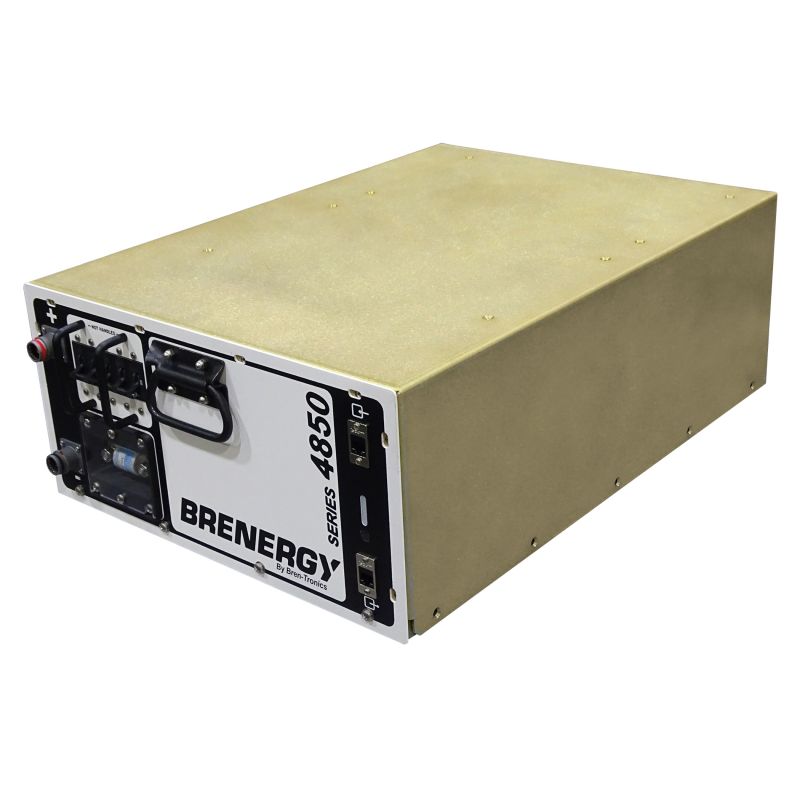

Brenergy™ Series 4850, 5kWh Li-ion Battery
Chemistry:
Li-ion
Large Form-Factor, 5kWh, Rechargeable Lithium-Ion Battery
This 48V 100Ah battery is an advanced energy solution for use in various applications including solar energy systems, generators, smart grid applications, UPS backup power systems and more.
• Integral BMS, with RS-485 Comm
• Amphenol SurLok Plus™ power connectors with integral safety interlocks
• Energy Capacity 5.0kWh
• Individual cell monitoring
• Can be paralleled for increased capacity
• Over-voltage/under-voltage/over-current/over-temperature protection
• Long Cycle Life
• Built-in State of Charge indicator
Dimensions
Length: 24
Width: 17.3
Height: 8.75
Other
| SKU | BT-70980A-50 |
|---|---|
| Nominal Voltage | 50.4V |
| Ah | 100 |
| Maximum Voltage | 58.8V |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Connector | Amphenol SurLok |
| State of Charge Indicator | No |
| Battery Type | Rechargeable |
| Smart Battery | CAN |
| Brenergy | Yes |
