SKU
BTA-70490-1
OEM xx90 Connector
NSN
5935-01-606-9487

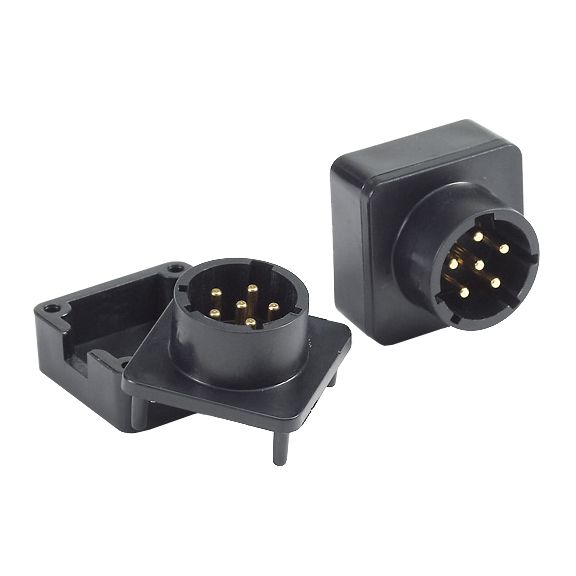

X90 Male 6-Pin Plug
Create a custom cable to pull power from the BB-390B/U, BB-2590/U, BA-5590 and other X90 batteries. Can be wired in serial or parallel mode.
• The connector consists of a 1.03" x 1.03" square housing connected to a cylindrical 0.75 OD housing containing
six (6) gold plated pins
Dimensions
Length: 1.03
Width: 1.03
Height: 1.01
Other
| SKU | BTA-70490-1 |
|---|---|
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Case Materials/Colors | Modified ABS Plastic / Black |
| cable | No |
