SKU
BTA-70781A

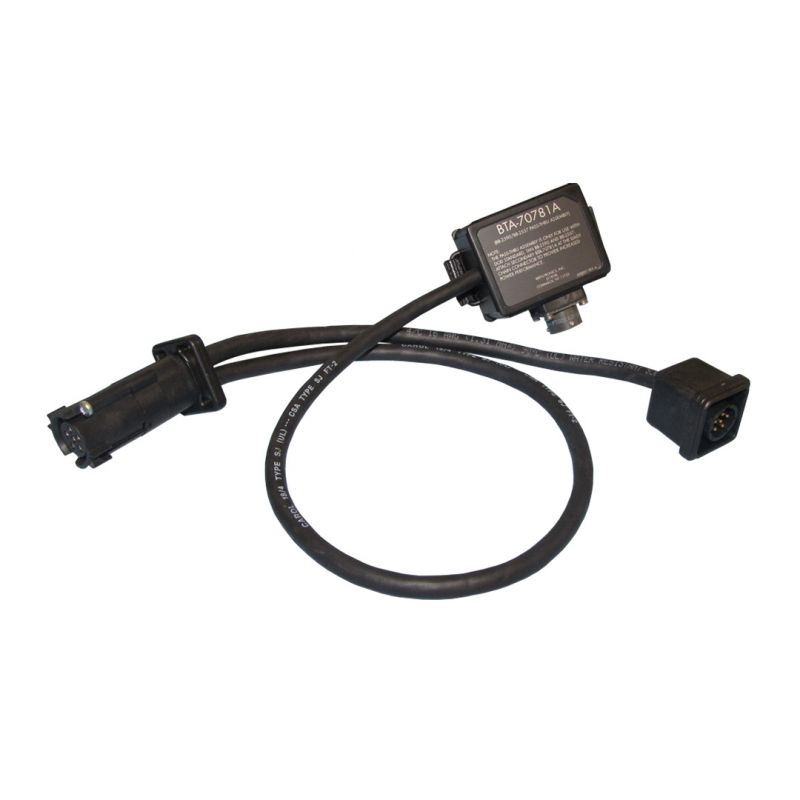

Cable, Isolated Pass Thru, Daisy Chain
NSN
5325-01-609-0355
Isolated Pass Thru Cable
When used with the BTC-70663 Advanced Charge Controller, this adapter cable allows for a BB-2590/U or BB-2557/U to charge, while providing the ability to power a X90 application
- When connected to the solar charger and power source provides up to 1.75A to each section of the battery while the battery provides power to the application
- The output of this cable is 14.4V or 28.8V nominal depending on wiring
- The BTA-70781A cable provides the same output and pin out as the BB-2590/U and BB-2557/U batteries
- Multiple Isolated Pass Thru cables can be connected together via the daisy chain connector for increased capacity and power output
Dimensions
Length: 23
Other
| SKU | BTA-70781A |
|---|---|
| Storage Temperature | -40°C to + 70°C (-40°F to + 158°F) |
| Case Materials/Colors | ABS / Black |
| cable | No |
