SKU
BTA-70791A-5
BTA-70791A-5(R2)
NSN
6150-01-606-9489

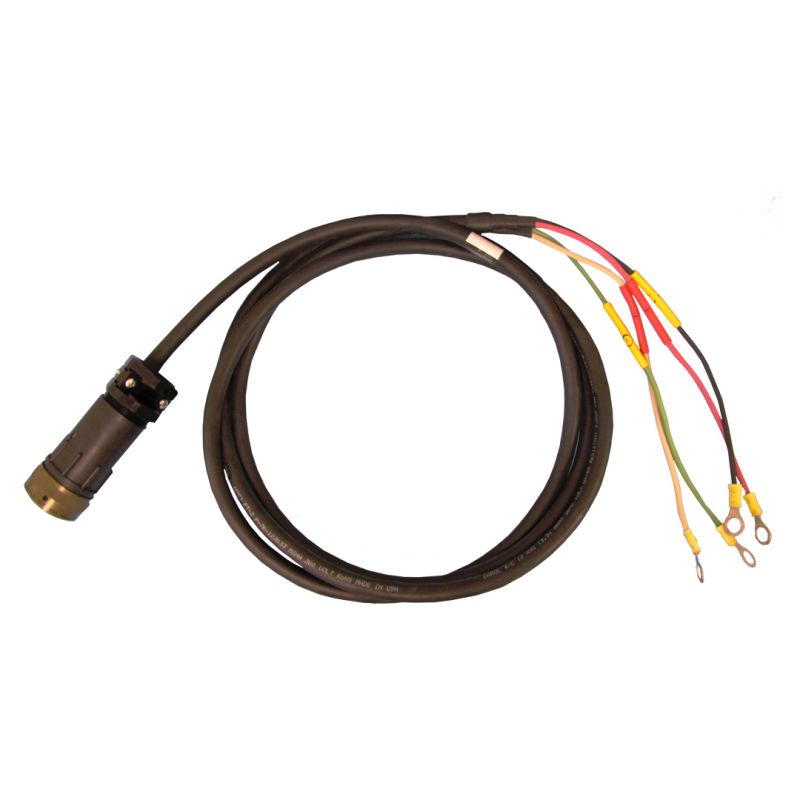

12/24V DC 6-PACK Output CableWith Ring Lugs, (RoHS)
- The BTA-70791A-5(R2) is an output cable for use with the 6-PACK Portable Power System.
- The Cable connects to the output of the 6-PACK, AC Booster, or DC Booster and
provides 12 or 24V DC from 3/8" ring lugs. - The output cable can be configured in the following three (3) ways:
- Series for 24V mode
- Parallel for 12V mode
- Separate for two (2) 12V sections
- Battery section 1-3 the red wire is the + terminal and the black wire is the - terminal.
- Battery section 4-6 the white wire is the + terminal and the green wire is the - terminal.
Dimensions
Length: 118
Other
| SKU | BTA-70791A-5 |
|---|---|
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Case Materials/Colors | Plastic/Metal Connector/Black |
| cable | No |
