SKU
BTA-70838-6A

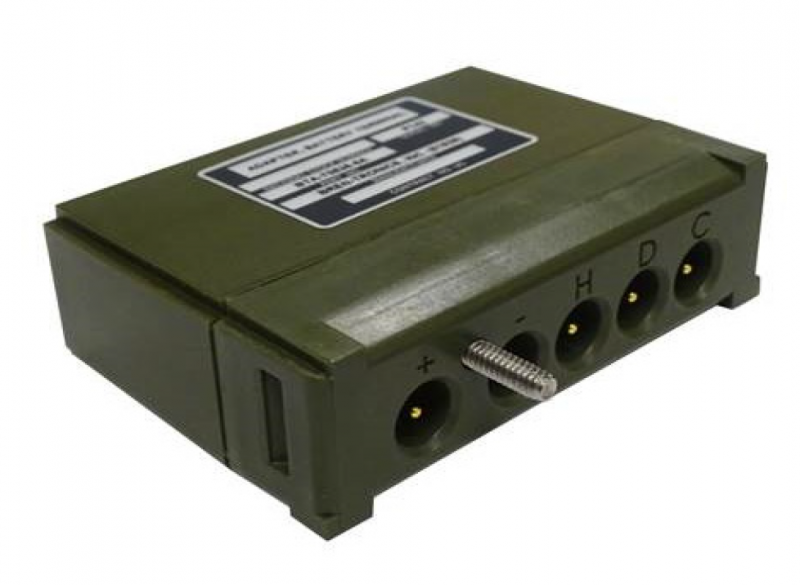

SMP Adapter for 1/3 SMP Batteries
NSN
5940-01-609-0352
SMP Battery Size Adapter
The BTA-70838-6A clips onto the end of 1/3 Soldier Modernization Program (SMP) batteries and when used in conjuction with the BTA-70838-2/3A adapter will charge on the following Vehicle Mounted Chargers (VMC):
- The BTA-70838-6A clips onto the end of 1/3 Soldier Modernization Program (SMP) batteries and when used in conjuction with the BTA-70838-2/3A adapter will charge on the following Vehicle Mounted Chargers (VMC):
- BTC-70870 Series (VMC Lite)
- BTC-70988 Series (VMC Mini)
- The SMP Adapter can be temporarily screwed to the VMC battery adapter port to enable the user to easily insert and remove a 1/3 battery thus allowing charging while the VMC lid is closed.
Dimensions
Length: 2.6
Width: 3
Height: 0.91
Other
| SKU | BTA-70838-6A |
|---|---|
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Case Materials/Colors | Modified ABS Plastic / Olive Drab |
| cable | No |
