SKU
BTF-70791 (PP-8497/U)
Discharger, xx90
Military #
PP-8497/U
NSN
6130-01-490-4310

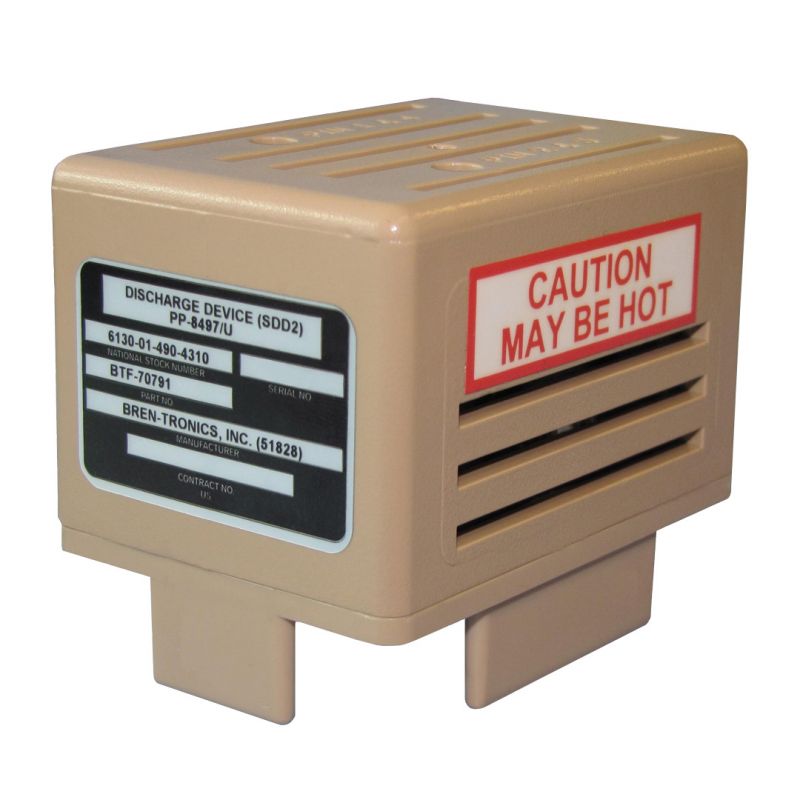

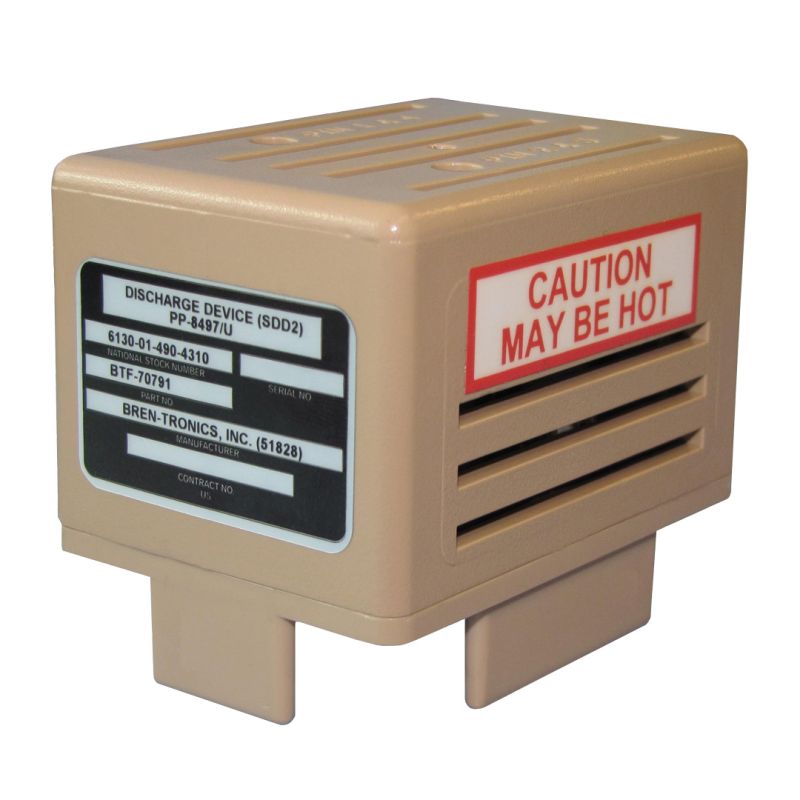

Self Discharge Device (SDD2) for the BB-2590/U, BB-390B/U, and BB-2557/U
The BTF-70791 is a battery discharger used to discharge a multi-section battery such as the BB-390B/U (BT-70790xx), BB-2590/U (BT-70791xx), or BB-2557/U (BT-70757xx). Its LED indicator communicates the battery's voltage status.
- Discharges multi-section batteries such as:
- BB-390B/U (BT-70790xx) in 24 hours when fully charged
- BB-2590/U (BT-70791xx) in 24+ hours when fully charged
- BB-2557/U (BT-70757xx) in 8+ hours when fully charged
- The LED indicator communicates the presence of voltage at the battery terminals during the discharging process and extinguish when the discharge process is completed.
Dimensions
Length: 2.69
Width: 1.94
Height: 2.25
Weight: 0.2 lbs.
Other
| SKU | BTF-70791 |
|---|---|
| Battery Related Items | BB-2590/U (BT-70791), BB-2590A/U (BT-70791) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Case Materials/Colors | ABS / Black or Tan |
| cable | No |
