SKU
BTK-70887-x
Power Supply Kit, AC/DC to Trailer Hitch
70W AC/DC Power Source

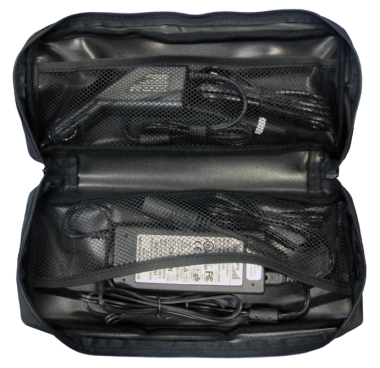

The BTK-70887-x kit contains AC/DC adapter that takes AC power from any standard wall outlet (90-264Vac, 50/60Hz, 1A) and DC/DC adapter that takes power from 12-16Vdc from a vehicle cigarette lighter power port.
• Adapters can be used in conjunction with multiple Bren-Tronics chargers.
• The DC/DC Adapter has the capability of charging USB enabled devices with a 5V, 1.5A USB outlet.
• Certifications include: CE, UL, ASA, RoHS.
Supported AC Plug Configurations |
|
|---|---|
Model # |
Description |
| -1 | United States |
| -2 | European Union |
| -3 | United Kingdom |
| -4 | Australia |
Dimensions
Length: AC Power Supply: 5.2 in (133 mm), DC Cigarette Lighter: 5.2 in
Width: AC Power Supply: 2.3 in (59 mm), DC Cigarette Lighter: 3.8 in
Height: AC Power Supply: 1.2 in (30 mm), DC Cigarette Lighter: 0.8 in
Other
| SKU | BTK-70887-x |
|---|---|
| Storage Temperature | -20°C to +70°C (-4°F to +158°F) |
| Case Materials/Colors | Plastic/Metal/Black |
| cable | No |
