SKU
BTP-70791-AC3

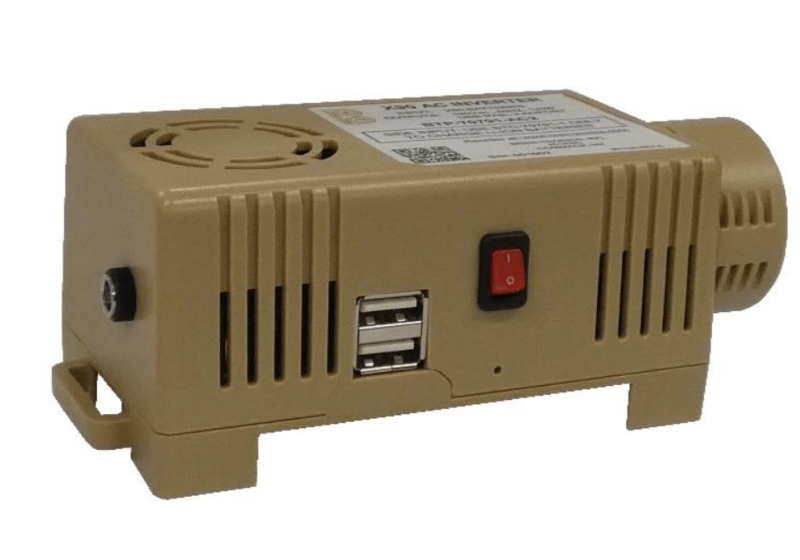

XX90 230V AC and USB Cap w/Charger Port
BTP-70791-AC3
Charge up your USB powered devices using standard military batteries: BA-5590/U, BA-5390/U, BB-2590/U, and BB-390/Us. Charges your phone, PDAs, Cameras, Tablets, portable media players and more in same time it normally takes with any other USB option. Keep your battery charged when paired with the BTC-70791-1.
*** Requires BTC-70791-1 for battery charging ***
- Provides 120W, 230Vac, 50Hz modified sine wave output from X90 style batteries.
- Peak power of 200W.
- Two USB ports negotiate with mobile device to provide up to 2.1A each of output.
- Internal protection circuitry automatically shuts down in cases of output shorts, excessive current draw, and temperature overload.
- Incorporates an On/Off switch.
- Provides LED status indicator for AC output.
- Temperature controlled cooling fan runs only when necessary.
- Charger input - 2.5A maximum rate of charge from a lithium battery charger Bren-Tronics part number BTC-70791-1.
- AC output connector - NEMA15 socket.
Dimensions
Length: 5.13
Width: 2.62
Height: 2.12
Weight: 1.0 lbs.
Other
| SKU | BTP-70791-AC3 |
|---|---|
| Storage Temperature | -22°F to 158°F (-30°C to 70°C) |
| Case Materials/Colors | Plastic/Tan |
| cable | No |
