SKU
BTP-70791-QC3

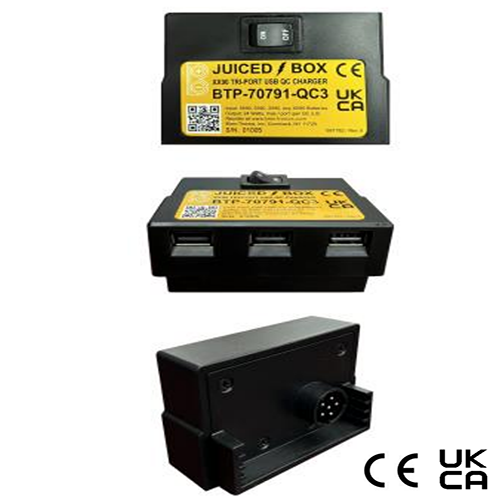

Juiced Box
XX90 Tri-Port USB QC Charger
- The BTP-70791-QC3 can be powered by batteries with X90 I/O connector.
- Three (3) USB Type-A ports can be used independently in power Source mode only.
- Each port is capable of providing up to 5V at 3A, 9V at 2.5A or 12V at 2A; max of 24W.
- Adaptive mobile device handshake supports wide variety of devices with QC 2.0.
- Internal protection circuitry automatically shuts down port in cases of output shorts excessive current draw, and temperature overload.
- Power switch to turn-OFF USB ports when not in use.
- Use of original charging cables ensures the best charge time.
- CE and UKCA Compliant
Dimensions
Length: 2.27 in (57.7 mm)
Width: 2.38 in (60.5 mm)
Height: 1.62 in (41.1 mm)
Weight: 0.2 lbs.
Other
| SKU | BTP-70791-QC3 |
|---|---|
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Case Materials/Colors | PVC Plastic/Black |
| cable | No |
