SKU

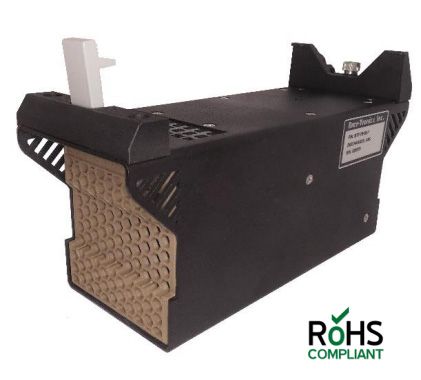

BTF-70100-2
Universal Discharge, ABC, Basic
ABC Adapter that allows both charging and discharging when using existing ABC battery adapters.
The BTF-70100-2, installed between the ABC (BTC-70100) and battery adapters, allows allows the ABC to manage the charging and discharging of batteries. Additionally:
-
- Charges batteries normally.
- Automatically charges/discharges batteries to a user-specified SOC (e.g., 30%). This is particularly useful when preparing batteries for shipment.
- Automatically charge/discharge cycles (reconditions) nickel batteries to reduce the capacity memory effect.
- Measures the battery capacity to determine its health condition.
- Max discharge current: 2 x 6A (6A per channel)
- Max discharge power: 250 W (total both channels)
- Closed loop temperature control and over temperature protection
- Automatic fan speed
Dimensions
Length: 9.8 in (249 mm)
Width: 3.5 in (89 mm)
Height: 6.3 in (160 mm)
Weight: 4.4 lbs.
Other
| SKU | BTF-70100-2 |
|---|---|
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Case Materials/Colors | Aluminum/ABS Black/Tan |
| cable | No |
