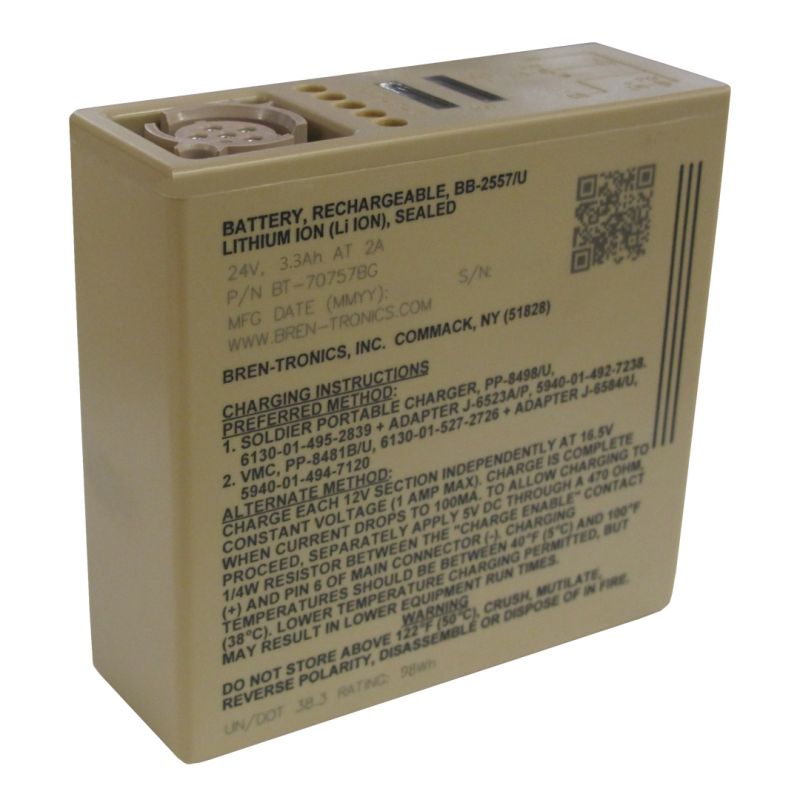

BT-70757BG, BB-2557/U zoom

  • BT-70757BG, BB-2557/U

Limited Production Available - Please Refer to BT-70757BV Our Highest Capacity BB-2557/U or Contact Us For More Information (BB-2557/U)

BT-70757BG

This configuration of the BB-2557/U offers the best performance of any Bren-Tronics BB-2557 configurations. It's more durable and runs 50% longer than the BT-70757 (BB-2557/U). It is certified by the DOD for Military Use.

  • Military#: BB-2557/U
  • NSN: Conforms to: 6140-01-490-5387
  • Chemistry#: Li-ion
Refer to BT-70757BV.
  • ● Complies with SMBus v1.1 and SBData v1.1

    ● UN/DOT 38.3 Rating: 98 Wh

    ● Comparable to: BT-70557, BT-70757, BT-70757A, BT-70757BE, BT-70757BK, BT-70757G, BB-2557/U, and
       BB-557/U

    ● Absolute state of charge indicators

    ● Highest Capacity battery for longer run time. 50% greater run times than the BB-2557/U.


    Typically used in:

    ● TACFIRE (AN/PSG-2A & 2B)

    REMBASS (RT-1175A/GSQ)

    AN/PSQ-7

    ● Unmanned Robots (UGV/UAV)

Size / Weight

  • Length

    4.125 +/- 0.031 in (105 +/- 0.78 mm)

  • Width

    1.437 +/- 0.031 in (37 +/- 0.78 mm)

  • Height

    3.916 +/- 0.031 in (99 +/- 0.78 mm)

  • Weight

    1.2 lb (0.54 kg)

Other

  • SMBus

    Yes

  • State of Charge Indicator

    Yes

  • Connector

    6 Pin Floating Type per U.S. Army DWG # SC-C-179495

  • Voltage

    28.8V, Two (2) Sections each 14.4 V

  • Maximum Voltage

    33.6V, Two (2) Sections each 16.8V

  • Capacity

    In 24V Mode: 3.3 Ah, In 12V Mode: 6.6 Ah

  • Storage Temperature

    -40°C to +40°C (-40°F to +104°F)
