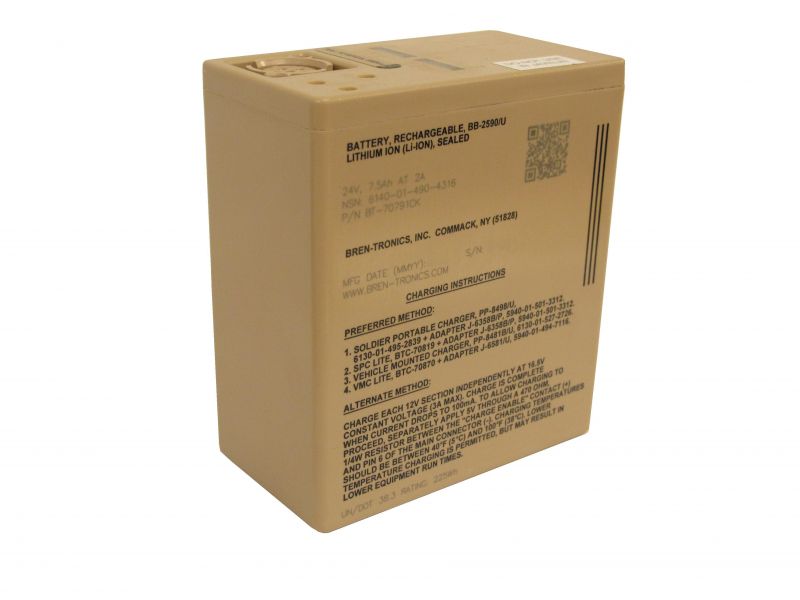

BB-2590/U, 251 Wh
7.5 Ah, Rechargeable Lithium-Ion Battery
Typically used in over 71 different devices such as Communications gear (SINCGARS, AN/PRC-117, etc.), Robots, and Jammers.
Designed to meet MIL-PRF-32052/1 (note: while meeting this spec MIL-PRF-32052/1 is no longer an active specification for the BB-2590/U which has been replaced by the BB-2590A/U under MIL-PRF 32383/3)
Designed in the USA.
• Complies with SMBus v1.1 and SBData v1.1
• UN/DOT 38.3 Rating: 225 Wh
• Certified by US Army to MIL-PRF-32052/1
• Comparable to: BB-2590A/U, BT-70701Bx, BT-70791Cx and BT-70791Jx
• Visit: www.bren-tronics.com/patents for patent information
• CE Compliant
Typically used in:
• Robots
• Surveillance / Sensors
• SINCGARS & ASIP (AN/PRC-119) Radios
• FALCON (AN/PRC-150, 117) Radios
Dimensions
Other
| SKU | BT-70791CK |
|---|---|
| Nominal Voltage | 14.4V, 28.8V |
| Ah | In 24V Mode: 7.5 Ah, In 12V Mode: 15 |
| Maximum Voltage | 16.8V |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +40°C (-40°F to +104°F) |
| Connector | Floating type per U.S. Army DWG # SC-C-179495 |
| State of Charge Indicator | Yes |
| US Gov Spec | MIL-PRF-32052/1 |
| Battery Type | Rechargeable |
| Smart Battery | SMBus |
