ABC Input Cable, 24VDC, Ring Lugs

SKU

BTA-70100-DC24-3

NSN

5995-01-684-3807

DC Power Cable for BTC-70100

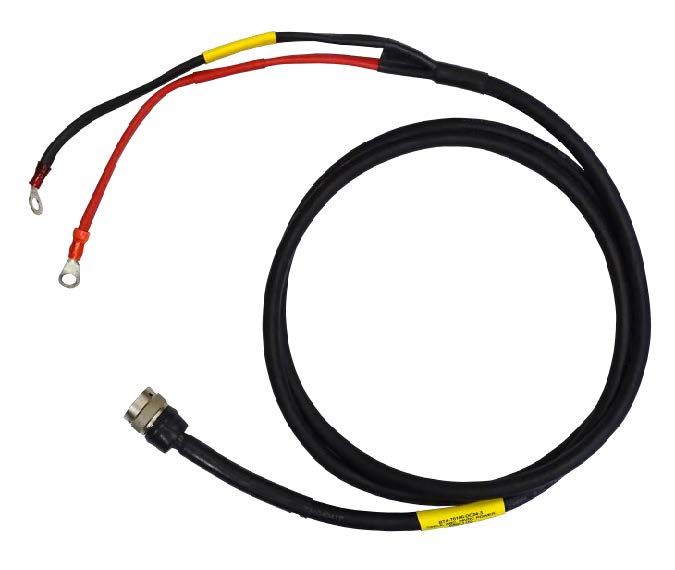

The BTA-70100-DC24-3 is a standard 24Vdc cable (with ring lug terminations),
used for powering the Advanced Battery Charger (ABC)
Integral identification feature prompts the ABC to automatically configure its under-voltage
lockout (UVLO) and input-current limit to support operation within the limits below:
- Input-voltage range: 22-36Vdc
- Input current (max.): 46A
- Input power (max.): 1000W

Length: 6

Weight: 1.5 lbs.

More Information
SKU	BTA-70100-DC24-3
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Case Materials/Colors	Rubber with Metal Connector/Black
cable	Yes
