SKU
BTA-70100-DC24-1
ABC Input Cable, 24VDC, NATO

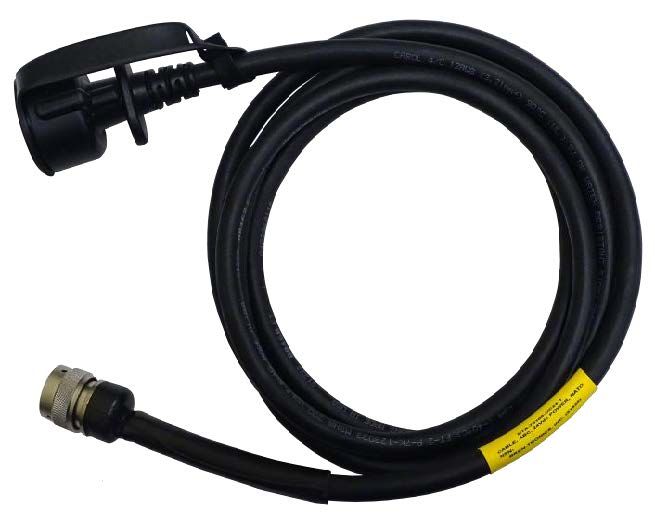

NATO DC Power Cable for BTC-70100
- The BTA-70100-DC24-1 is a standard 24Vdc cable (with NATO slave connector), used for powering the Advanced Battery Charger (ABC).
- Integral identification feature prompts the ABC to automatically configure its under-voltage lockout (UVLO) and input-current limit to support operation within the limits below:
- Input-voltage range: 22-36Vdc
- Input current (max.): 46A
- Input power (max.): 1000W
Dimensions
Length: 6
Weight: 2.2 lbs.
Other
| SKU | BTA-70100-DC24-1 |
|---|---|
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Case Materials/Colors | Rubber with Metal Connector/Black |
| cable | Yes |
