SKU
BT-70651CE (BA-682B)
ALI-142 (63 Wh)
Military #
BA-682B
NSN
6140-01-609-8035
Chemistry:
Li-ion

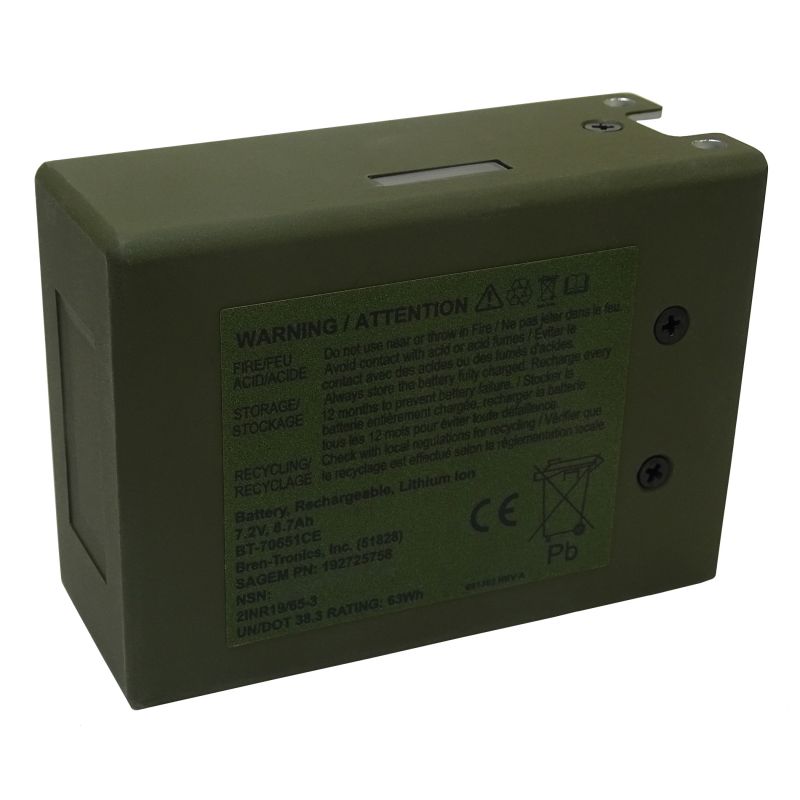

Rechargeable Lithium-Ion Battery
Color: Green. Typically Used in: Handheld Radio Set PR4G and Thermal Imager Jim LR.
• UN/DOT 38.3 Rating: 63 Wh

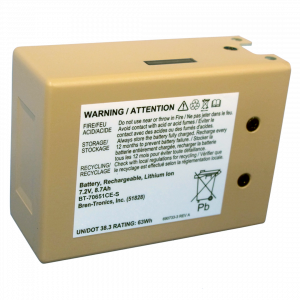

• Comparable to: BT-70651E, BT-70651E-S, BT-70651BE, BT-70483, BT-70483-S, BT-70483BE, BT-70483BE-S,
BT-70582, BT-70582BA and ALI-142
• Enhanced cold temperature performance
• Absolute state of charge indicator
• CB Test Certificate for compliance with battery safety standard IEC 62133
Typically used in:
• Handheld Radio (PR4G)
• Thermal Imager (JIM LR)
Dimensions
Length: 2.5
Width: 1.4
Height: 3.6
Other
| SKU | BT-70651CE |
|---|---|
| Nominal Voltage | 7.2V |
| Ah | 8.4 |
| Maximum Voltage | 8.4V |
| Operating Temperature | -32°C to +60°C (-25.6°F to +140°F) |
| Storage Temperature | -40°C to +40°C (-40°F to +104°F) |
| Connector | 2 Hole Socket |
| State of Charge Indicator | Yes |
| Battery Type | Rechargeable |
| Brenergy | No |
