SKU
BT-70716-1/2AV

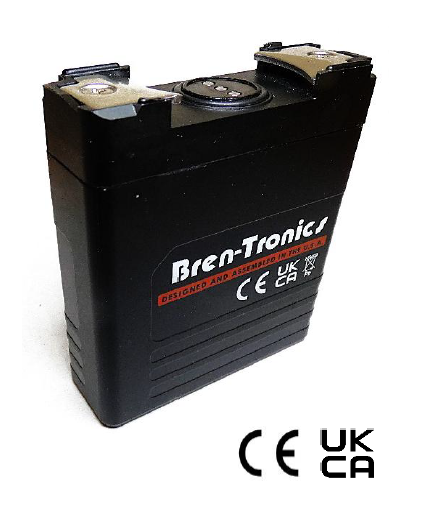

Half MBITR PRC-148, 3.5 Ah
Chemistry:
Li-ion
3.5 Ah Rechargeable Lithium-Ion Battery
Half sized version of the AN/PRC-148 battery. Designed for applications where size and weight are mission critical. Compatible with current AN/PRC-148 charging solutions with size adapter (BTK-70100-148-1/2).
• MAX Power 4 Amp
• Communicates using a Single Wire DQ interface
• UN/DOT 38.3 Rating: 38 Wh
Dimensions
Length: 2.6
Width: 0.9
Height: 3.4
Weight: 0.5 lbs.
Other
| SKU | BT-70716-1/2AV |
|---|---|
| Nominal Voltage | 10.8V |
| Ah | 3.5 |
| Maximum Voltage | 12.6V |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Storage Temperature | -40°C to +40°C (-40°F to +104°F) |
| Connector | Flat Contacts (bottom), 1/4-Turn (top) |
| State of Charge Indicator | No |
| Battery Type | Rechargeable |
| Smart Battery | DQ |
