xx90 Cable, Sealed Low Profile
BTA-70942-x
High strength sealed BB-2590/U connector with open ended cable and configuration for 12Vdc or 24Vdc. Ultra low profile design offers the ability to discharge in up to 1 meter of water. Contact us for info on mounting hardware.
Current Configurations Include
Bren-Tronics
|
DC Voltage |
Dress Direction |
Shielded |
|---|---|---|---|
| BTA-70942-1 | 12/24V | Left | No |
| BTA-70942-2 | 24V | Right | No |
| BTA-70942-3 | 24V | Left | No |
| BTA-70942-4S | 12/24V | Right | Yes |

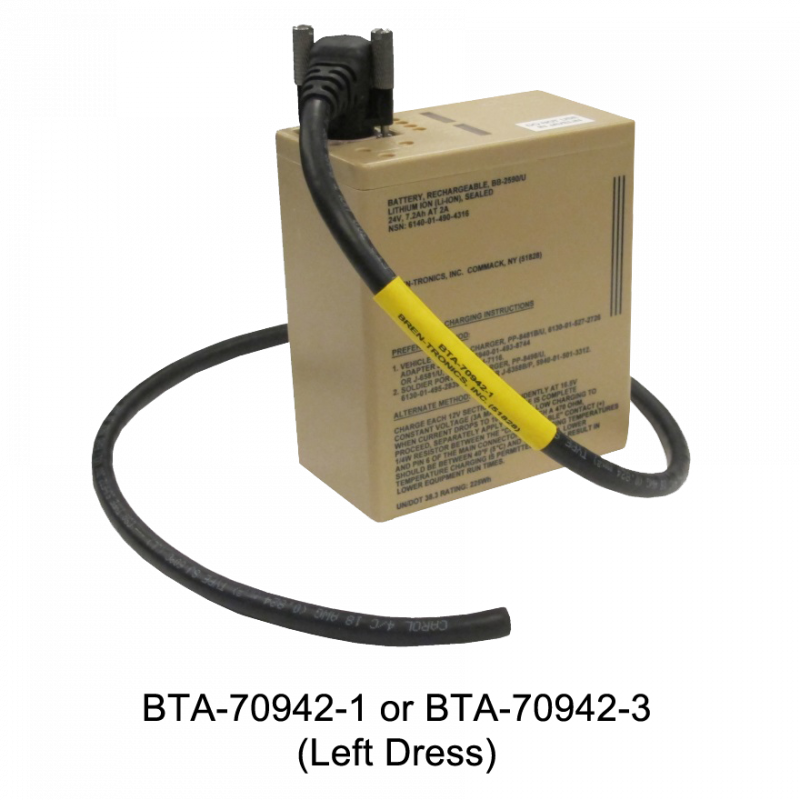

• The BTA-70942 series are sealed low profile cables that fit on the new Bren-Tronics BB-2590/U,
BB-390B/U or BB-2557/U batteries. Please contact us for information on our mounting hardware.
• Robust design with integral strain relief.
• Open ended cable can be configured for 12Vdc or 24Vdc.
• Connector "Locks Down" on battery allowing operational immersion in greater than 1 meter of water.
More Information
| SKU | BTA-70942-1|BTA-70942-2|BTA-70942-3|BTA-70942-4S |
|---|---|
| cable | No |
