  • Advanced Battery Charger (ABC)

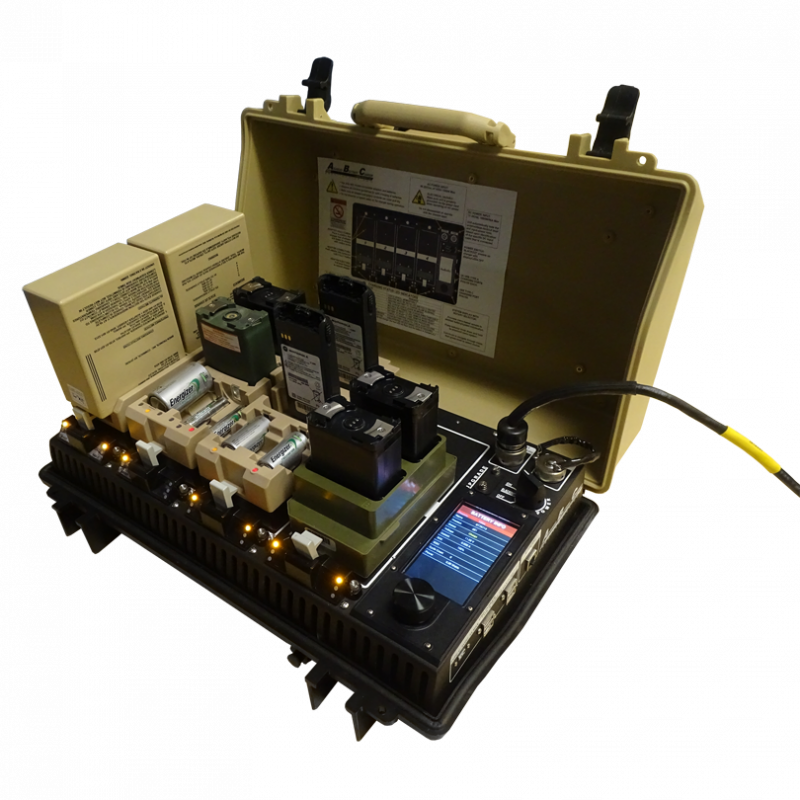

BTC-70100, ABC Charger shown with multiple adapters and batteries (sold separately) including SPC and SPC Lite accessories. zoom

  • BTC-70100, ABC Charger shown with multiple adapters and batteries (sold separately) including SPC and SPC Lite accessories.
  • BTC-70100, ABC Charger fully loaded with adapters and BB-2590/U batteries (sold separately). Full charge from 0% to full in less than 3 hours
  • BTC-70100, ABC Charger fully loaded with adapters and Conformal batteries (sold separately).

Advanced Battery Charger (ABC)

BTC-70100

The ultimate in charging performance with fast charging: 8 BB-2590/U batteries charged from 0% to full in less than 3 hours and 16 Conformal BB-2525/U batteries in less than 3.5 hours. (1000W) or 300W user selectable input power control. CE marked.

  • NSN: 6130-01-660-3696
For more information on product data below contact your local Sales Rep or Cust. Support: 1-631-499-5155 x131 or email sales@bren-tronics.com.

  • ● Flexible input power: AC (90-264Vac), DC (11-22Vdc, 46A), or Solar with MPPT (Maximum Power Point Tracking, 11-36Vdc)
    ● Familiar charging status: Red/Yellow/Green LED indicators
    ● Full-color 4.3” LCD display
    ● Menu navigation through rotary selector switch: gloved use, night operation compatible, blackout mode



    ● Display menu functions allow the user to see: detailed battery status (SOH, SOC, charging status...),
       charger's performance and system configuration.



    ● 4 USB Type-A Charging Ports: 5V, 2A capable
    ● 1 USB Type-C Charging Port: 5V, 3A capable
    ● Stand alone firmware upgrade using USB flash drive



    ● Removable cover to minimize required footprint
    ● Durable, compact and lightweight design: <1.0 ft3, <22 lbs
    ● IP67 - water resistant up to 3 feet for 30 minutes
    ● Compliant with MIL-STD-810, MIL-STD-454, MIL-STD-461 and MIL-STD-1275
    ● RoHS Compliant
    ● CE Marked

Size / Weight

  • Length

    20.0 in (508 mm)

  • Width

    13.1 in (333 mm)

  • Height

    6.3 in (160 mm)

  • Weight

    22.0 lb (9.98 kg)

Other

  • Materials / Color

    Polypropylene ABS Plastic / Black Base, Tan Cover; Aluminum Chassis

  • Power Requirements

    AC:90-264Vac, 47-440Hz. DC: 11-22Vdc, 46A Maximum. Solar: 11-36Vdc, 1000W Maximum

  • Storage Temperature

    -40°C to 71°C (-40°F to 160°F)

  • Operating Temperature

    -31°C to 55°C (-25°F to 131°F)

The following are optional accessories not included with featured product and sold separately.

All legacy SPC fielded adapters are supported. Please contact your local Rep for details or
contact Customer Support: 1-631-499-5155 x131 or email sales@bren-tronics.com

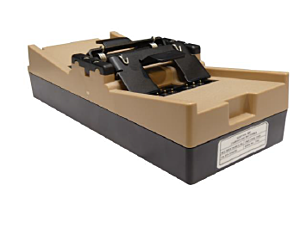

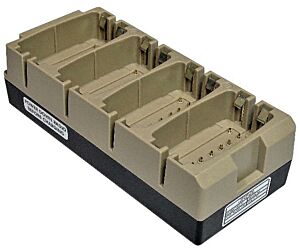

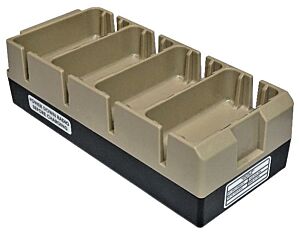

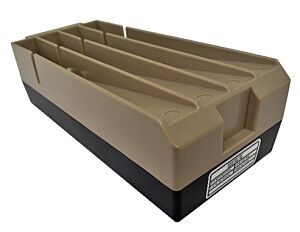

ABC BATTERY ADAPTERS
BT Part No. Batteries Supported - 2 per adapter

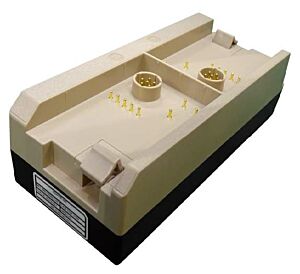

BTA-70100-1
 BB-2590/U, BB-2557/U, BB-390B/U, BB-590, BB-557/U, 16.5V adapter

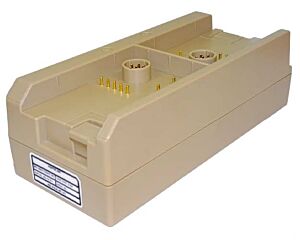

BTA-70100-1A BB-2590/U, BB-2557/U, BB-390B/U, BB-590, BB-557/U, 16.8V adapter

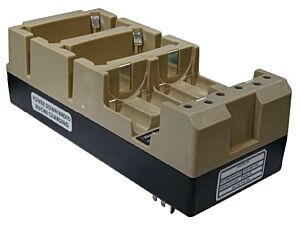

BTA-70100-2 AN/PRC-148*, AN-PRC-152*, D NiMH. It coudl also hold 4 of AA NiMH
BTA-70100-3 AN-PRC-153*, C NiMH

Battery models marked with * are chargeable with/without radio attached.

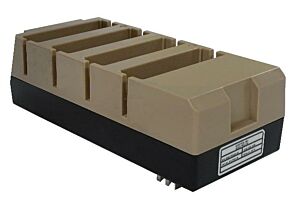

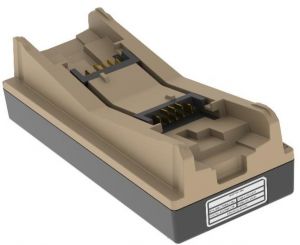

Additional adapters available for: BB-2847A/U, BB-2600/U, Conformal BB-2525/U, BB-2800/U,
AN-PRC-154 and more.



CABLES
Part No. Lenght
 Terminal

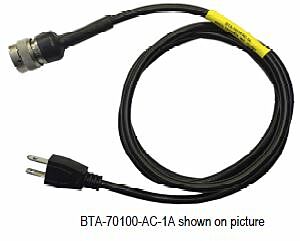

AC Power Cables (90-264Vac)
BTA-70100-AC-1
BTA-70100-AC-1A
BTA-70100-AC-2
BTA-70100-AC-3
BTA-70100-AC-4
10ft
6ft
6ft
6ft
6ft
NEMA5, 15P (US)
NEMA5, 15P (US)
CEE 7/ Terminal, EU
BS 1363 Terminal, UK
AS/NZS 3112 Terminal, AU
DC Power Cable (12Vdc)

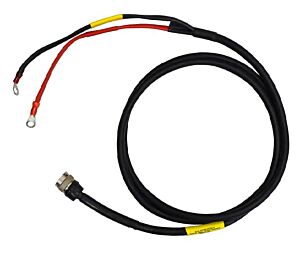

BTA-70100-DC12-1
BTA-70989-DC12-1
8ft
13ft
Ring Lug 12V Vechicle Operation
Alligator Clips
DC Power Cables (24Vdc)
BTA-70100-DC24-1
10ft
NATO Plug
BTA-70100-DC24-2
 10ft GREENS
BTA-70100-DC24-3
 8ft Ring Lug 24V Vehicle Operation
Solar Power Cables
BTA-70100-DCS-1
12ft		 AISPCA - MC4 Connector
BTA-70100-DCS-2
 8ft Trailer Hitch Solar
Adapter Cable
BTA-70100-ACA-1
2.75in
NEMA6-15P to 5-15R (US)



SOLAR PANELS
BTP-592400-x
 60W Foldable Flexible. Available in Woodland Camo (-G) and Tan (-T)
BTP-592433-MC
BTP-592436-MC           		 60W Foldable and Impact Resistant
120W Foldable and Impact Resistant
BTP-70227-T 124W
