SKU
BT-70747BV
BB-2847A/U, 10.3 Ah
Military #
BB-2847A/U
Chemistry:
Li-ion

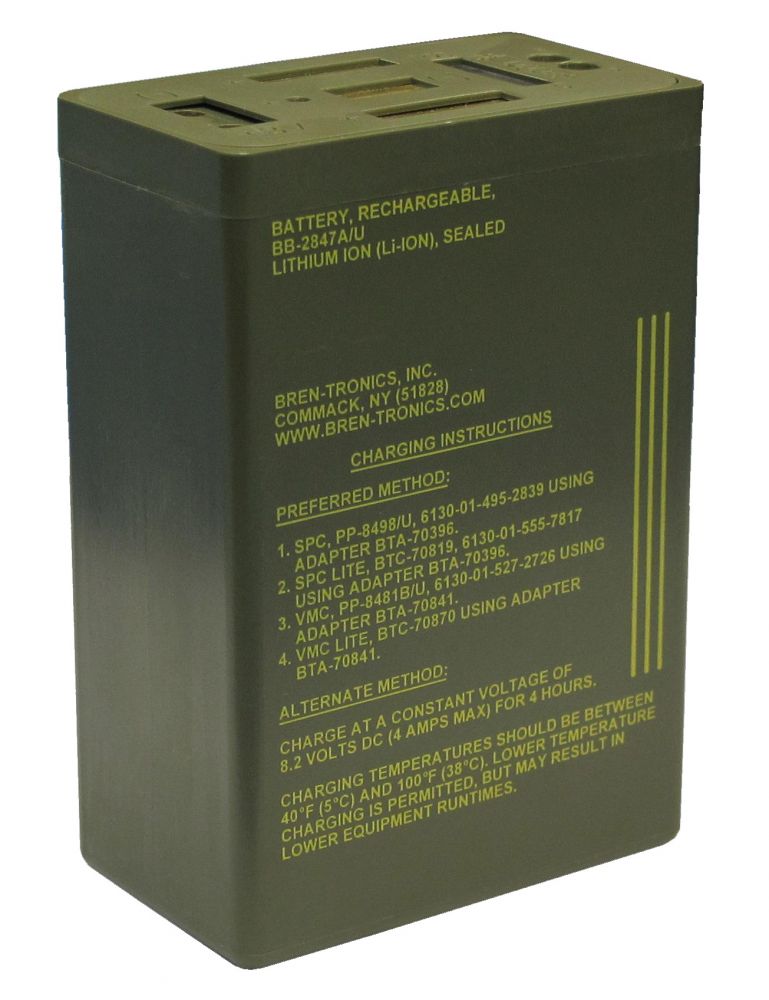

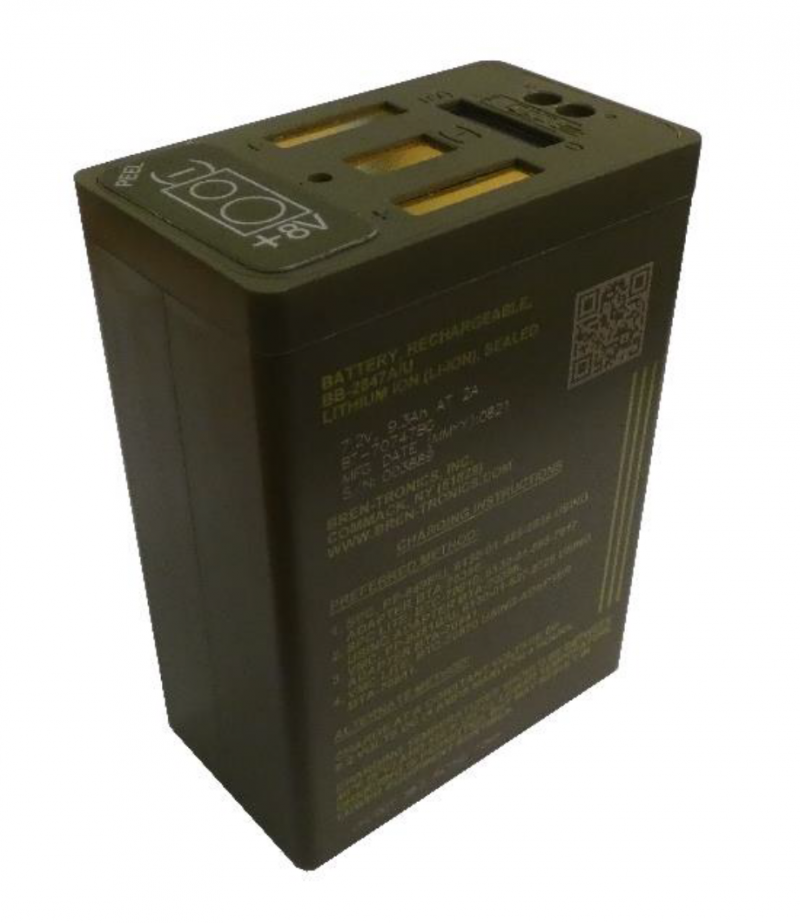

10.3 Ah, Rechargeable Lithium-Ion Battery
The first Lithium-Ion Battery approved for use in combat operations. Typically used in AN/PRM-34 (Radio Set), AN/PRS-7 (Mine Detector) and AN/PAS-13 (Thermal Weapon Sight). Additional capacity versions available.
- Complies with SMBus v1.1 and SBData v1.1
- Comparable to: BB-2847A/U, BA-5347/U, BT-70747, BT-70747A, BT-70747Bx, BT-70478 and BT-70478A
- Enhanced cold temperature performance version (BT-70747BE)
- Absolute state of charge indicator
- Typically used in:
- Radio Set (AN/PRM-34)
- Mine Detector (AN/PRS-7)
- Thermal Weapon Sight (AN/PAS-13)
Dimensions
Length: 2.55 +/- 0.031
Width: 1.50 +/- 0.031
Height: 3.75 +/- 0.031
Weight: 0.8 lbs.
Other
| SKU | BT-70747BV |
|---|---|
| Nominal Voltage | 7.2V |
| Ah | 9.3 |
| Maximum Voltage | 8.4V |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +40°C (-40°F to +104°F) |
| Connector | 2 Hole Socket and Flat Contacts |
| State of Charge Indicator | Yes |
| Battery Type | Rechargeable |
| Smart Battery | SMBus |
