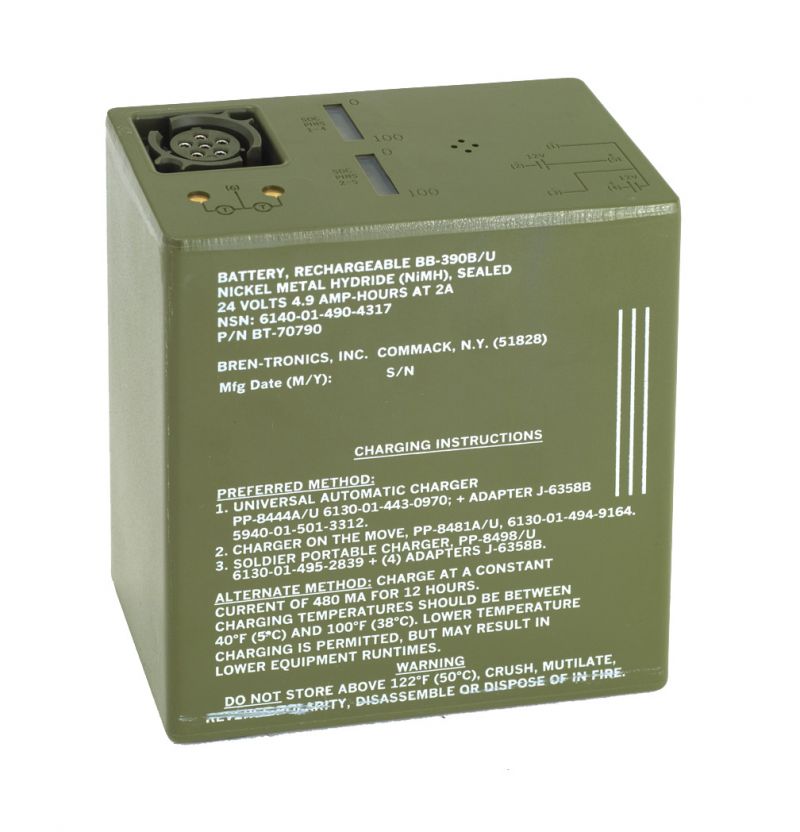

SKU
BT-70790 (BB-390B/U)
Upgraded to BT-70790B
Military #
BB-390B/U
NSN
6140-01-490-4317
Chemistry:
Ni-MH
Rechargeable Nickel Metal Hydride Battery.
Typically used in Communications / Chemical / CLU / Computer / Robotics: SINCGARS & ATCS (AN/PRC-104, 117, 119), FALCON (AN/PRC-138, 117) KY-57, MXF430 (V), AN/PSC-5, M22, JAVELIN, LRAS.
Part number has been replaced. Please refer to BT-70790B.
• Comparable to: BB-390A/U, BT-70290, BB-590/U, BT-70409, BB-2590/U, BT-70791A, BT-70791E, BB-490/U, BB-690/U, and BA-5590/U
Typically used in:
• SINCGARS & ATCS (AN/PRC-104, 119)
• FALCON (AN/PRC-138, 117) KY-57
• MXF430 (V), AN/PSC-5, M22
• JAVELIN, LRAS
Dimensions
Length: 4.4
Width: 2.5
Height: 5
Other
| SKU | BT-70790 |
|---|---|
| Nominal Voltage | 12.0V, 24.0V |
| Ah | In 24V Mode: 4.9 Ah, In 12V Mode: 9.8 |
| Maximum Voltage | 30.0V, Two (2) Sections each 15.0V |
| Operating Temperature | -20°C to +55°C (-4°F to +131°F) |
| Storage Temperature | -40°C to +40°C (-40°F to +104°F) |
| Connector | Floating type per U.S. Army DWG # SC-C-179495 |
| State of Charge Indicator | Yes |
| US Gov Spec | MIL-PRF-32052/1 |
| Battery Type | Rechargeable |
