SKU
BT-70791BK (BB-2590/U)

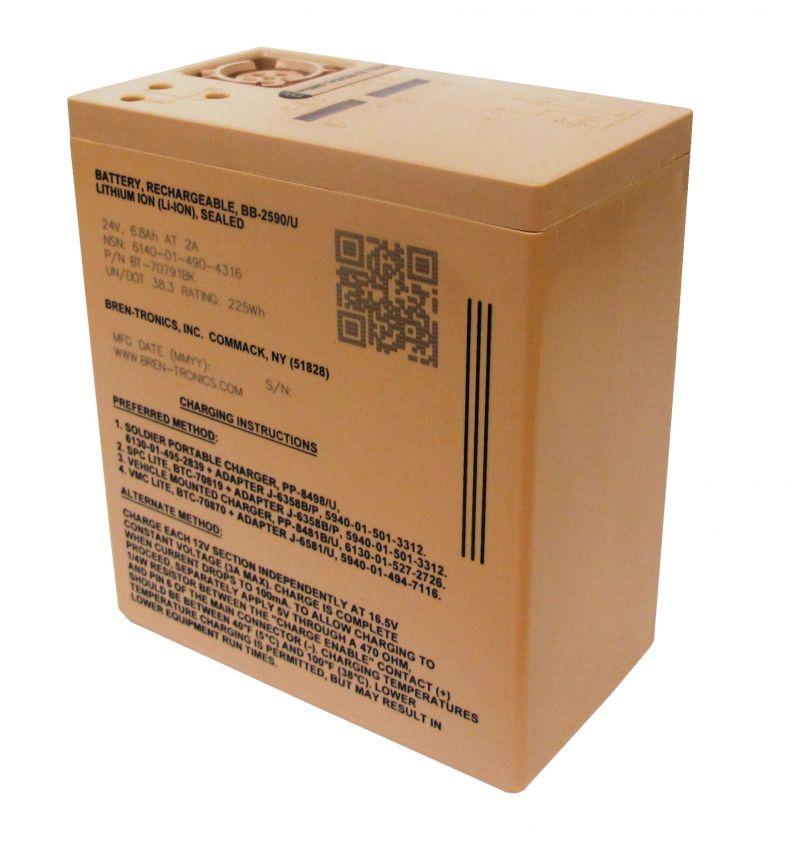

BB-2590/U, 225 Wh
Military #
BB-2590/U
NSN
6140-01-619-5070
Chemistry:
Li-ion
• Complies with SMBus v1.1 and SBData v1.1
• New Ruggedized Case Construction
• Comparable to: BB-2590/U, BT-70791A, BT-70791Bx and BT-70791Cx
• UN/DOT 38.3 Rating: 225Wh
• Protected by one or more U.S. Patents 5,625,273 and 6,242,893 and 8,961,225 and D705,167.
Other Patents Pending
• Compliant to European Council EMC Directive 2004/108/EC
Typically used in:
• Robots
• Surveillance / Sensors
• SINCGARS & ASIP (AN/PRC-119) Radios
• FALCON (AN/PRC-150, 117) Radios
Dimensions
Length: 4.4
Width: 2.4
Height: 5
Other
| SKU | BT-70791BK |
|---|---|
| Nominal Voltage | 14.4V, 28.8V |
| Ah | In 24V Mode: 7.5 Ah, In 12V Mode: 15 |
| Maximum Voltage | 16.8V |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +40°C (-40°F to +104°F) |
| Connector | Floating type per U.S. Army DWG # SC-C-179495 |
| State of Charge Indicator | Yes |
| Battery Type | Rechargeable |
| Smart Battery | SMBus |
